40000CPH 12 Heads Led Chip Mounter Machine For Flexible Strip Light

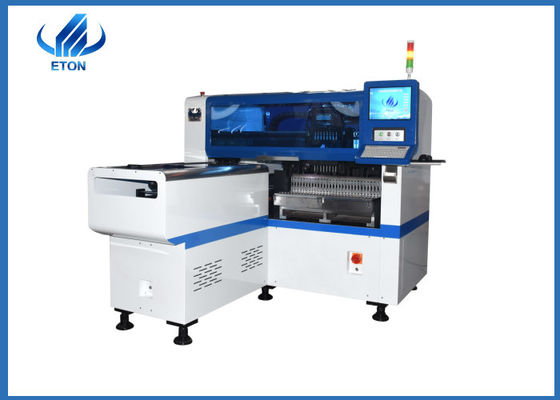

Large Image :  40000CPH 12 Heads Led Chip Mounter Machine For Flexible Strip Light

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Model Number: HT-E8S-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB USD 49000~59000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 work days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Pick And Place Machine Dimension: 2550*1650*1550mm
Software: R&D Independently Warranty: 1 Year
Speed: 40000CPH Nozzles: 8PCS
Feeders: 30 PCS Production Name: Led Machine
High Light:

12 Heads Led Chip Mounter Machine


40000CPH Led Chip Mounter Machine


40000CPH led chip smd mounting machine

40000CPH 12 Heads Led Chip Mounter Machine For Flexible Strip Light


12 heads Led Bulb led chip mounter machine for flexible strip light


Features of led mounting machine

E8S pick and place machine is multifunctional SMD mounting machine,single model with linear magnetic motor and servo motor.with group to pick and separate placing function ,suitable a kind of smd.This module is suitable for many types of products.


Product details

1. Precision mounting head system
The mounting method of 8 nozzle heads, group picking and separate placing / separate picking and separate placing can meet the mounting requirements of different components.
Each nozzle head is independently controlled by an independent servo motor to reduce feeding and ensure mounting accuracy at a higher speed than the stepper motor.
2. High precision imported screw
The X and Y axis adopts high-end magnetic linear motor to control the screw, and the Z axis adopts panasonic servo motor to control and drive, with ultra-high acceleration performance and stable movement speed to ensure the accuracy and stability of each step of mounting.


PCB PCB length width Max:1200*300mm min:100*100mm
PCB thickness 0.5~5mm
O.S. system Windows 7
software R&D independently



No.of camera

2sets of imported camera

Vision for the alignment identification,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <36mm
Mounting speed 40000CPH
Components space 0.2mm
No.of feeders station 30PCS
No.of nozzles 8PCS
Power 380AC 50HZ
Power consumption 4KW
Electrical control Independent research and development by ETON
Motion control card module 1set Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way Electric feeder with double motor

40000CPH 12 Heads Led Chip Mounter Machine For Flexible Strip Light 0

40000CPH 12 Heads Led Chip Mounter Machine For Flexible Strip Light 1


lamps and lanterns: fluorescent lamp, bulb lamp, ceiling light, panel light, cast light lamp, mining lamp, down light, etc

Lighting: soft light tube, hard tube, advertising module, etc
Pasting class: LED watch pasting

Mounting components:LED,5630 5050 3014 3528 2835 0402 1206 5730 lens,IC,shaped components,etc.

Application:led light industry:panel light,tube,led bulbs,street light,power driver,etc

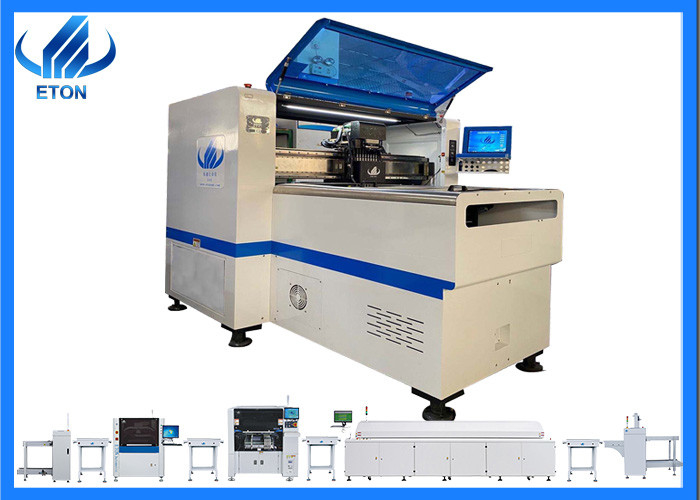

SMT production line layout

Stencil Printing: solder paste is a follow-up material for the surface adhesive components and PCB to connect with each other.

Component Placement: Component Placement is the key technology and work focus of the entire SMT process. The process USES highly precise automatic mounting equipment to accurately place the surface mount components on the solder pad of the printed PCB through computer programming.

Reflow Soldering,(Reflow Soldering) : Reflow Soldering is to have been placed on the surface of adhesive components of the PCB.


Company information

lwe will send our engineer to your factory to install machine and training freely.

lWe have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.

lStandard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
