| Name: | SMD Mounting Machine | Speed: | 200000CPH |
|---|---|---|---|
| Feeders: | 68 PCS | Components: | LED 3014/3020/3528/5050 Resistor Capacitors |
| PCB Size: | 250mm*any Length | Position Mode: | Optical |
| High Light: | 3828 SMD Mounting Machine,led chip smd mounting machine,64 Heads smd mounting machine |
||

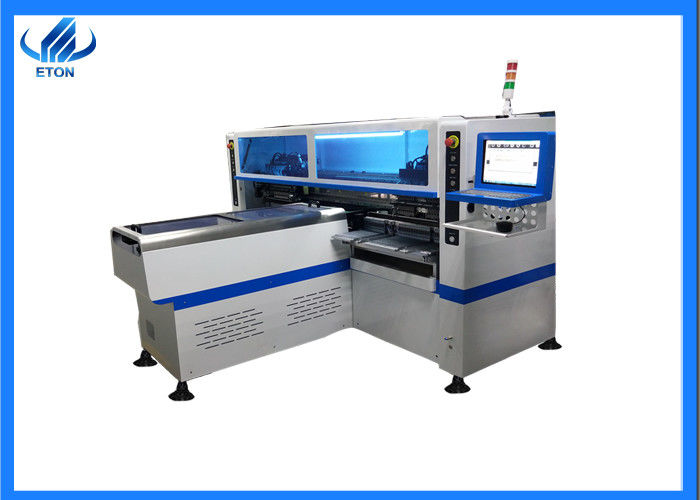

64 Heads 3828 SMD Mounting Machine For Led Tube Strip Light
64 heads high speed 3828 SMD pick and place machine for led tube strip light
Details of SMD mounitng machine
F9 pick and place machine with Group to take and group to mount technology,The speed aroud 250000CPH.smd mounting machine is the most important part in the whole SMT production line.For the production efficiency ,The pick and place machine must have good stable and high speed.
F9 pick and place machine can perfect realitied the good stability and high proformence.
Attached its technical parameter:
| HT-F9 | ||
| PCB | PCB length width | Max:1200*330mm min:80*330mm |
| PCB thickness | 0.5~5mm | |
| software | R&D independently | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting speed | 200000CPH | |
| No.of feeders station | 68PCS | |
| No.of nozzles | 68PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor +magnetic linear motor | |
The production layout
vacuum loader / Automatic stencil printer /single-rail conveyor/pick and place machine/single-rail reflow oven /conveyor / unloader
Stencil Printing: solder paste is a follow-up material for the surface adhesive components and PCB to connect with each other. First, the steel plate is etched or laser cut, and then the solder paste is printed on the welding pad of PCB by the squeegee of the Printing machine, so as to enter the next step.
Component Placement: Component Placement is the key technology and work focus of the entire SMT process. The process USES highly precise automatic mounting equipment to accurately place the surface mount components on the solder pad of the printed PCB through computer programming.As the design of surface adhesive components is becoming more and more precise, the distance between the joints is becoming smaller, so the technical level difficulty of placement operation is increasing day by day.
Reflow Soldering,(Reflow Soldering) : Reflow Soldering is to have been placed on the surface of adhesive components of the PCB, after Reflow furnace first preheating with activated flux, to raise its temperature to 217 ℃ melt solder paste, feet and PCB Soldering pad connected components, then after cooling, cooling, make the solder curing, surface adhesive components and PCB bonding is completed.
Wooden vacuum packaging:
Our close-up style:
FAQ
Q: How is the training?
A: After you buy the machine, we will have an engineer to your factory for free installation and training
Q: Is it hard to use these machines?
A: No,not hard at all.For our previous clients,at most 3~5 days is enough to learn to operate the machines.
Q: Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q: The Warranty of the machine?
A: One year,then the parts will be free for the buyer in the warranty.
Q: English version for these machines?
A: Yes,In Both Chinese and English.
