Product Details:
Payment & Shipping Terms:
|
| Length*Width*Height: | 1200*1930*1500mm | Total Weight: | 2200kg |
|---|---|---|---|
| PCB Length Width: | Max:400*350mm Min:50*50mm | Mounting Speed: | 35000 CPH |
| No.of Feeders Station: | 32 PCS | No.of Nozzles: | 10 PCS |
| High Light: | Auto SMT Production Line,Multifunctional SMT Production Line,DOB Mounting Machine |
||
Multifunctional Auto SMT Production Line DOB Mounting Machine Single Module
High Performance High Precision DOB Production Line SMT Mounting Machine

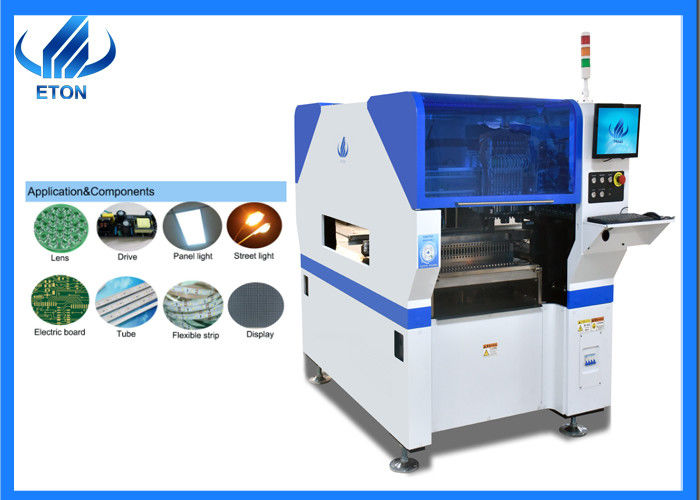

RT-1 machine is single module multifunctional mounter with high capacity of 35000CPH. It can mount capacitors, resistors, LED3014/3020/3528/5050, IC and shaped components. It applies to power driver, electric board, lens, linear bulb, household appliance and etc.
| Technical parameter | |
| Length*Width*Height | 1200*1930*1500mm |
| Total Weight | 2200kg |
| PCB Length Width | Max:400*350mm Min:50*50mm |
| Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
| Mounting speed | 35000 CPH |
| Components | LED,resistor,capacitors,shaped components,etc. |
| power/power consumption | 380AC,50Hz/ 6kw |
| No.of Feeders Station | 32 PCS |
| No.of nozzles | 10 PCS |
| Mounting Height | <22mm |
Main process of SMT Line for DOB manufacturing
Different type of DOB PCBA
The PCBA of Linear bulbs
What is SMT Placement Machine?
The placement machine is the main equipment in the SMT production line. The placement
machine has developed from an early low-speed mechanical placement machine to a high-speed
optical centering placement machine, and has developed into a multi-functional, flexible
connection and modularization. The automatic placement machine is a device used to realize
high-speed and high-precision automatic placement of components. It is the most critical and
complex device in the entire SMT production.
=================================================
FAQ:
Q1: Are you a manufacturer or trading company?
A1: manufacturer. We have our own industrial park.
Q2: What about the shipping methods?
A2: A variety of transportation methods for you to choose. By sea, air and road.
Q3:What’s your delivery time?
A3:Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q4:How can you make sure we will receive the machine with high quality?
A4: Our team will inspect each batch of machine before delivery, we have certificates of CE,CCC,SIRA.
Q5:How is your service?
l Our technicians can come to train and install machines, etc.
l We regularly visit customers to understand customer usage and collect customer opinions.
l We regularly provide customers with the latest production technology and equipment information.
