Product Details:
Payment & Shipping Terms:
|
| Name: | Led Tube Pick And Place Machine/smt Machine/mounter | Speed: | 250000 Cph |
|---|---|---|---|
| Nozzles Number: | 68 Pcs | Feeders Number: | 68 Pcs |
| Max Pcb Size: | 1200*330 Mm | Total Weight: | 1700 Kg |
| High Light: | LED Tube Pick And Place Machine,250000 Cph Pick And Place Machine,smt pick and place machine |
||
LED Tube Lamp SMT Pick And Place Machine 1.2m 0.6m 250000 Cph Speed
LED Tube lamp pick and place machine
LED Tube lamp pick and place machine features
LED Tube is the old lighting, also the normal and popular lighting in our daily life. There are only led chip on this lighting board. It is very easy design. So for the led tube pick and place machine, the speed is the most important for the big capacity.

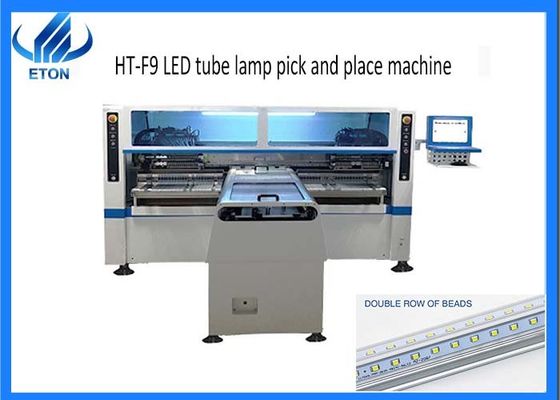

ETON pick and place machine HT-F9 is the super high speed led tube pick and place machine, there are 68 PCS of nozzles, 68 feeders for sent led chip. The capacity can be reach 250000 Chip per hour. What the 250000 CPH mean ? If there are 50 led chip on per led tube, for one hour, one machine could produce 5000 pcs led tube. Of course, 250000 cph is the theoretical speed, for the real speed is depend on your lighting design and the quality of the pcb , etc.
Besides, ETON pick and place machine is very intelligent, it could be Automatic recognition of replenishment if there are miss led chip on the board. Much save labor cost and improve the capacity.
LED Tube lamp pick and place machine parameter
| Model: | HT-F9 |
| PCB Length Width: |
Max:1200*330 mm Min:100*100 mm |
| Mounting speed: | 200000-250000 chip per hour |
| No. of Feeder station: | 68 PCS |
| Power | 380 AC 50HZ |
| Dimension: | 2700*2300*1550 mm |
| PCB Clamping: | Adjustable pressure pneumatic |
| Components: | SMD LED 3014/3020/3528/5050/5735/5630 and resistor, capacitor, bridge rectifiers, etc |
| No. of Nozzles: | 68 PCS |
| Feeding way | Electric feeder with double motor |
Led Tube lamp pick and place machine application
HT-F9 widely apply to different led modules. Such as 1.2m led tube, 0.6m led tube. Led panel, led strip light, led street light, etc. Machine suitable for rigid PCB and flexible pcb.
SMT machine list
ETON as the largest smt machine manufacturer in China. We provide the whole smt line machine for clients. Such as :
1. Pick and place machine
2. Automatic stencil printer
3. Semi-automatic stencil printer
4. Conveyor
5. 6 Zones reflow oven/8 Zones reflow oven10 Zones reflow oven/12 Zones reflow oven
6. 0.6m conveyor/1.2m conveyor/1.4m conveyor/double rail conveyor
7. Translational conveyor
8. NG/OK Loader/Un-loader machine
9. Stencil cleaning machine
10. Nozzles stencil cleaning machine
