Product Details:
Payment & Shipping Terms:
|
| No.of Nozzles: | 10 PCS | No.of Feeders Station: | 32 PCS |
|---|---|---|---|
| Power/power Consumption: | 380AC,50Hz/ 6kw | Mounting Speed: | 35000 CPH |
| Components: | LED,resistor,capacitors,shaped Components,etc. | Length*Width*Height: | 1200*1930*1500mm |
| High Light: | 35000CPH Pick And Place Machine,CCC Pick And Place Machine,35000CPH pick & place machine |
||

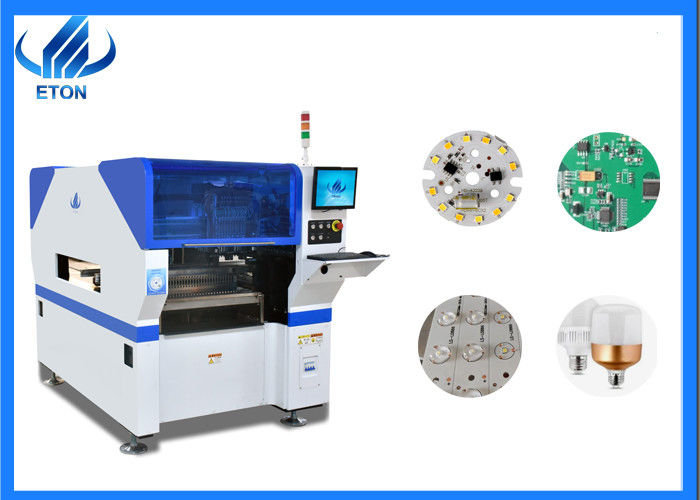

High Stability LED Pick And Place Machine Less Energy Consumption
Auto High-ed High Precision DOB Mounting Machine SMT Production Line
Advantage
1. Fast speed. 10 heads, with magnetic levitation, running faster
2. High precision. 2 sets of imported cameras, high CCD resolution, 0.01MM
3. Less energy consumption. Power is only 4kw
| Technical parameter | |
| Length*Width*Height | 1200*1930*1500mm |
| Total Weight | 2200kg |
| PCB Length Width | Max:400*350mm Min:50*50mm |
| Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
| Mounting speed | 35000 CPH |
| Components | LED,resistor,capacitors,shaped components,etc. |
| power/power consumption | 380AC,50Hz/ 6kw |
| No.of Feeders Station | 32 PCS |
| No.of nozzles | 10 PCS |
| Mounting Height | <22mm |
Main process of SMT Line for DOB manufacturing
Different type of DOB PCBA
The PCBA of Linear bulbs
Package
Standard is plastic film wrap the LED SMT machine, then load into wooden container;
Wooden box packing can be customized.
Delivery
Around 30 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery.
Service
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organisation and working system, guarantee you a fast delivery!
4) Supply you all the SMT proecssing related machines and devices with best prices!
