Product Details:
Payment & Shipping Terms:
|
| Length*Width*Height: | 1200*1930*1500mm | Total Weight: | 2200kg |
|---|---|---|---|
| PCB Length Width: | Max:450*350mm Min:80*80mm | Mounting Precision: | ±0.02mm ,Vision Alignment, Mark Vision |
| Mounting Speed: | 35000 CPH | Components: | LED,resistor,capacitors,shaped Components,etc. |
| High Light: | 1500mm Led Bulb Assembling Machine,1500mm Robot Stencil Pcb Machine,35000CPH Led Bulb Assembling Machine |
||

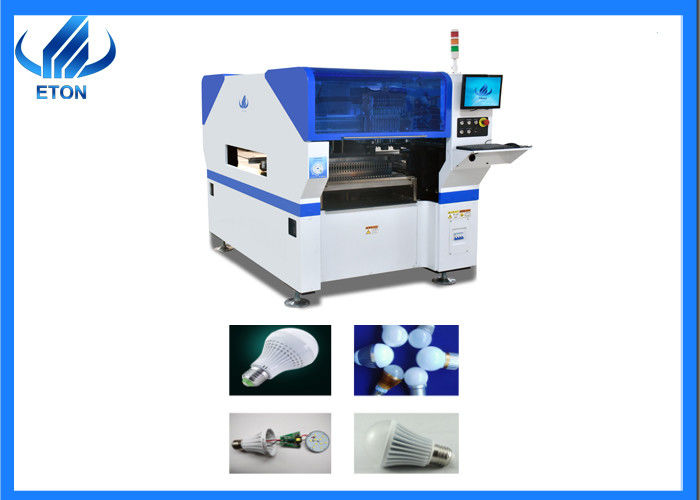

1500mm Led Bulb Assembling Machine Robot Stencil Pcb Machine
fully automatic led light bulb making machine pick and place robot mobile display making machine
Product Advantages
1. 4 pcs of cameras: 2pc of Mark, and 2 pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.
2. XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.
3. Servo Motor and Drive, precise linear guide, Vacuum generator, high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.
4. New mounting mode: the PCB board is fixed, and the head moves in the direction of XYZ axis. When attaching high components, the stability is improved.
| Technical parameter | |
| Length*Width*Height | 1200*1930*1500mm |
| Total Weight | 2200kg |
| PCB Length Width | Max:450*350mm Min:80*80mm |
| Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
| Mounting speed | 35000 CPH |
| Components | LED,resistor,capacitors,shaped components,etc. |
| power/power consumption | 380AC,50Hz/ 6kw |
| No.of Feeders Station | 32 PCS |
| No.of nozzles | 10 PCS |
| Mounting Height | <22mm |
Main process of SMT Line for DOB manufacturing
Different type of DOB PCBA
The PCBA of Linear bulbs
Manufacturer service
ETON highly value after-sales service:
1. ETON will provide one year warranty,during warranty, any parts need to be repaird and changed will be free.
2. ETON will sent our engineer to your factory to install and training, in freely.
3. ETON have a special overseas sales department, can support quickly.
