Product Details:
Payment & Shipping Terms:
|
| No.of Feeders Station: | 32 PCS | No.of Nozzles: | 10 PCS |
|---|---|---|---|
| Mounting Height: | <22mm | Power/power Consumption: | 380AC,50Hz/ 6kw |
| Components: | LED,resistor,capacitors,shaped Components,etc. | Mounting Speed: | 35000 CPH |
| High Light: | Pcb Inspection Charm Smt Machine,35000CPH Pcb Making Machine,35000CPH Smt Machine |
||

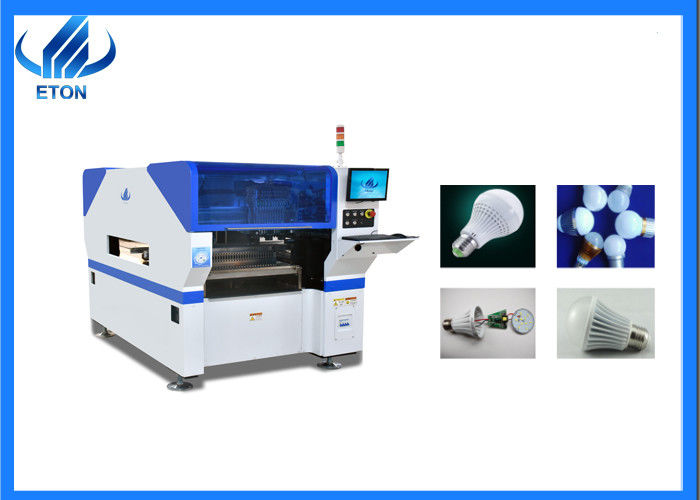

Pcb Inspection Charm Smt Machine Pcb Making Machine 35000 CPH
fully automatic led light bulb making machine pick and place robot mobile display making machine
Product Advantages
1. 4 pcs of cameras: 2pc of Mark, and 2 pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.
2. XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.
3. New mounting mode: the PCB board is fixed, and the head moves in the direction of XYZ axis. When attaching high components, the stability is improved.
| Technical parameter | |
| Length*Width*Height | 1200*1930*1500mm |
| Total Weight | 2200kg |
| PCB Length Width | Max:450*350mm Min:80*80mm |
| Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
| Mounting speed | 35000 CPH |
| Components | LED,resistor,capacitors,shaped components,etc. |
| power/power consumption | 380AC,50Hz/ 6kw |
| No.of Feeders Station | 32 PCS |
| No.of nozzles | 10 PCS |
| Mounting Height | <22mm |
Main process of SMT Line for DOB manufacturing
Different type of DOB PCBA
The PCBA of Linear bulbs
Company profile:
ETON Automation Equipment Co.,LTD.
a. We are a high-tech enterprise
b. We have been committed to the development, production, sales, and after-sales technical services of SMT high-speed machines.
c. We are committed to providing customers with "professional, efficient, low-consumption" SMT automatic placement machine solutions
Technology Innovation Certificate:
9 invention patents, 112 utility patents, 12 software copyrights
Including but not limited to: 2015 LED Technology Innovation Award, the 4th China LED Innovation Award...
For SMT factory setup,we can do for you:
1. We provide full SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
