Product Details:
Payment & Shipping Terms:
|
| Length* Width* Height: | 2700mm*2300mm *1550mm | PCB Size: | Max:1200*330mm Min:100*100mm |
|---|---|---|---|
| Mounting Speed: | 200000-250000CPH | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
| Feeding Way: | Electric Feeder With Double Motor | No. Of Head: | 68 PCS |
| High Light: | SMD Pick And Place Machine,SMT Pick And Place Machine,SMD Circuit Board Manufacturing Machine |
||

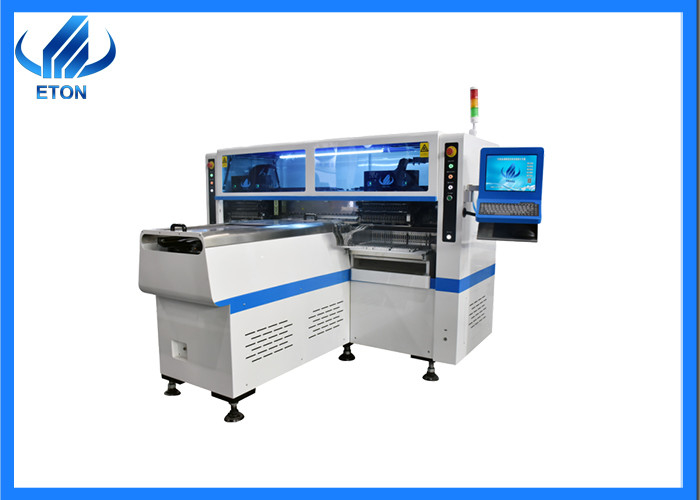

SMT SMD Pick And Place Machine Circuit Board Manufacturing Machine
Factory directly supply PCB assembly machinerySMT SMD pick and place machine with 5 cameras
Brief description
Capacity reach 200000 to 250000CPH ultra high-speed pick and place machine
68 heads, producing four types materials at the same time
Vision alignment, Mark correction
Apply to LED 3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers, etc
Apply to LED tube, panel, flexible strip, linear light, etc.
Technical parameter

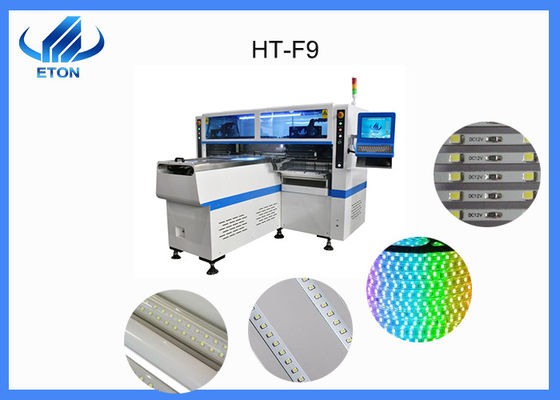

| HT-F9 ultra high-speed pick and place machine | |
| Length* Width* Height | 2700mm*2300mm *1550mm |
| Total weight | 1700kg |
| Size | Max:1200*330mm Min:100*100mm |
| Thickness | 0.5-5mm |
| Features | Vision alignment, Mark correction |
| Mounting speed | 200000-250000CPH |
| Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc |
| No. of nozzles | 68PCS |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor |
| Feeding way | Electric feeder with double motor |
What are the characteristics?
1. The speed of the placement machine launched by ETON Automation is the fastest in the world.
2. The actual production capacity of the 'HT' series of LED placement machines has reached 200,000 CPH, which greatly improves production efficiency for customers and reduces production and manufacturing costs.
3. Mounting component: LED chip (3014/3528/2835/3020/5050/5630/5730 etc), recistor, capacitors, bridage rectifiers etc.
Company information
Shenzhen ETON Automation Equipment Co., Ltd. was established in 2011. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales service of SMT high-speed placement machines. The company has always been committed to providing customers with "professional, efficient, and low-consumption" SMT automatic placement machines.
Exhibition
Honor
Services
FAQ
1. What components do our machines apply to?
Our machines can patch LED 3014/3020/3528/2835/5050/5630/5730 etc.,capacitors,resistors,IC,shaped components and so on.
2. Why do we adopt the smart electronic feeders?
Our machines adopt the smart electronic feeders which are more stable,universal and intelligent. The feeding speed of electronic feeder is faster than the traditional pneumatic feeder.It can avoid the cast and drop of materials effectively.
3. What the highest production capacity and precision of our LED pick and place machine?
Our machine's production capacity can reach 250000 chips per hour. It is the highest capacity in the field of LED pick and place machine.Our precision can reach 0.02mm,we adopt visual positioning,flight identification mark correction and smart industrial control system.
4. What about our technology patents and certificates?
We have got many technology patents which is gobal first invention. The global first way:Group picking and group placing. We have rich experience in researching and developing and got SIRA and CE certificate.We are approved as the national high-tech enterprise by the country.
