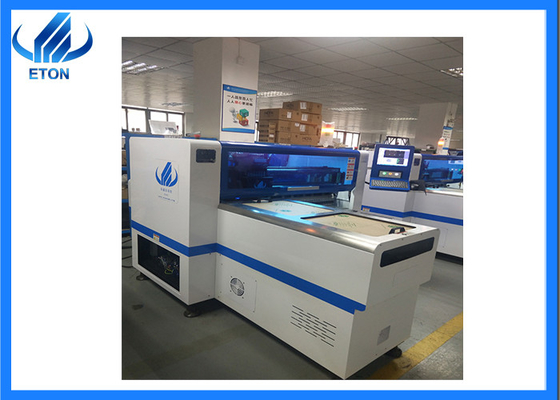

45000CPH Automatic Light Bulb Making Machine In Smt Production Line

45000CPH Automatic Light Bulb Making Machine In Smt Production Line
45000CPH Automatic Light Bulb Making Machine In Smt Production Line

Large Image :  45000CPH Automatic Light Bulb Making Machine In Smt Production Line

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-E8S-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Length* Width* Height: 2550mm*1650mm*1550mm PCB Size: Max:1200*500mm Min:100*100mm
PCB Thickness: 0.5-5mm PCB Clamping: Adjustable Pressure Pneumatic
Display: Touch Screen Monitor No. Of Camera: 2 Sets Of Imported Camera
Mounting Speed: 45000CPH No. Of Head: 12PCS Single Module
High Light:

45000CPH Light Bulb Making Machine

,

45000CPH auto bulb making machine

,

Touch screen Light Bulb Making Machine

45000CPH Automatic Light Bulb Making Machine In Smt Production Line



Prioduct description



Mounting components: LED, capacitors, resistors, IC, shaped components, etc.

Application: power driver, electric board, lens, linear bulb, household application etc.



Technical parameter



Length* Width* Height

2550mm*1650mm*1550mm

Total weight

1700kg

PCB Size

Max:1200*500mm Min:100*100mm

PCB Thickness

0.5-5mm

PCB Clamping

Adjustable pressure pneumatic

Display

Touch screen monitor

No. of camera

2 sets of imported camera



Vision for the flight identification, mark correction

Mounting speed

45000CPH

Components

LED, capacitors, resistors, IC, shaped components, etc.

No. of feeders station

28PCS single module

No. of nozzles

12PCS single module

XYZ Axis drive way

High-end magnetic linear motor + servo motor

Feeding way

Electric feeder with double motor



The advatage of machine



Low failure rate

The feeding method adopts dual-motor electronic feeder, independent control is more precise.

intelligent

Automatic recognition of compensation optimization, and non-stop refueling function.

Wide application

Mounting technology is group picking and splitting, splitting and splitting, which is suitable for the mounting of a variety of
products, such as: flexible light strips, panel lights, lenses, display screens, bulbs, tubes, etc.



45000CPH Automatic Light Bulb Making Machine In Smt Production Line 0

45000CPH Automatic Light Bulb Making Machine In Smt Production Line 1

45000CPH Automatic Light Bulb Making Machine In Smt Production Line 2



Application



1. Electronic industry

Electronic products are our standard products in the 21st century. Applications for mobile phones and notebooks can be seen everywhere, while the placement machine is responsible for the placement of chips on the motherboard. Due to the large output of electronic products and the precision production, they can only be placed through placement. The machine performs system placement.

2. LED industry

Due to the large demand for LED products, such as desk lamps, street lamps, ceiling lamps, large screens, small screens, and LCD screens, all need to use equipment for mounting.



FAQ



1. Do you have any service offices overseas?
We have service office in India, and have India engineer in Delhi and Mumbai, can support you.
2. What do you do if something goes wrong with my machine?
First of all, we will let the engineer contact you online to solve, if the line can not solve, we will arrange for the engineer to your factory to solve.
3. Is your software interface in English?
English interface and Chinese interface are both available.
4. How is the training?
After purchasing our machine, first we will send you the installation and operation video, and then we will arrange engineers to go to your factory for installation and training, or you can arrange your engineers to study and operate in our factory.
