Product Details:
Payment & Shipping Terms:
|
Max Pcb Size: | 450*350mm | Min Pcb Size: | 80*80mm |
---|---|---|---|
PCB Thickness: | 0.1-6mm | No. Of Heads: | 10 Pcs |
No. Of Feeder Station: | 32 Pcs | Dimension: | 1200*1930*1500mm |

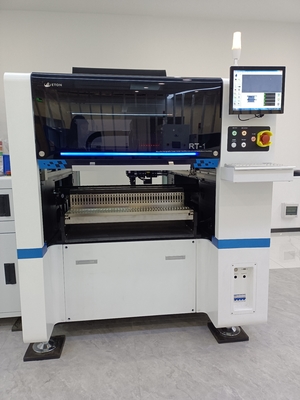

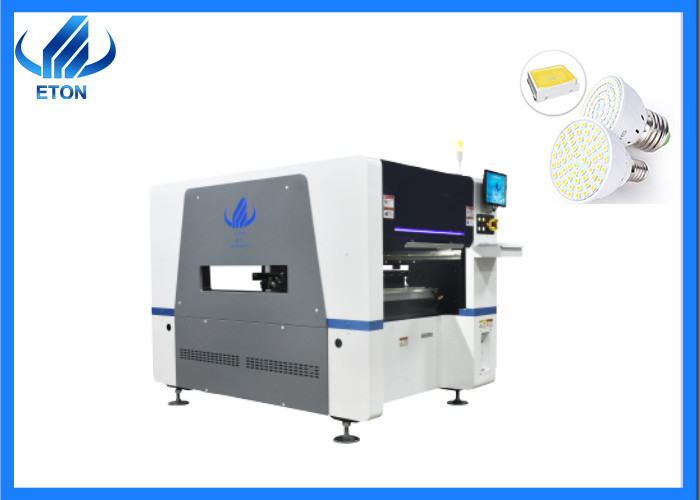

SMT PCB assembly machine led light making pick and place machine
Brief introduction of machine
1. Single-module magnetic levitation multifunctional placement machine;
2. The maximum mountable 450*350mmpcb board in all directions, the maximum mountable 610*350mmpcb board in non-omnidirectional range, the smallest mountable 80*80mm;
3. With 10 heads, the optimal production capacity can reach 40,000CPH;
4. Can be mounted with mounted LED chips, capacitors, resistors, small ICs, special-shaped components (minimum 0402, maximum 17mm);
5. Production of bulbs, DOB, linear bulbs, displays, downlights, street lights, panel lights, lenses, household circuit boards, ceiling lights, etc.
The main features about pick and place machine
1. High precision
XYZ axis drive way is high-end magnetic linear motor and servo motor;
Use a flight identification camera to capture head movements during production, compare programs, and compensate for components.
2. Mounting mode
It's group picking and separate placing, separate picking and separate placing, it can be applied to the production of a variety of
products
3. High efficiency
Use electronic feeder feeding system, have auto-optimization. The speed reaches 40000 CPH.
Technical parameters about the machine

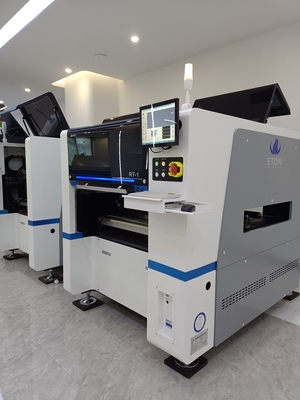

Application for RT-1 pick and place machine
Suitable for the production of any kind of LED lights, when the PCB board size does not exceed 450*350mm, such as: bulbs, panel lights, downlights, displays, tubes, linear bulbs, DOB, ceiling lights, solar lights , Driver board, etc.
Our advantage
After-services
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),South Asia(20.00%),Africa(5.00%),Mid-East(5.00%),Eastern Asia(5.00%),Eastern Europe(3.00%),South America(1.00%),Southern Europe(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pick and place machine,Automatc stencil printer,SMT machine,Reflow oven,LED light production line
4. why should you buy from us not from other suppliers?
1.Top brand in China,52000sqm factory,more than 300 staff. 2.Strong technology,134 patents . 3.Geniu quality:strict QC,international standard. 4.Big market share:Around 70-80% led factory are our partner. 5.Local service:Free installation and training .
