Product Details:
Payment & Shipping Terms:
|
| PCB Thickness: | 0.5-5mm | System: | Windows 7 |
|---|---|---|---|
| Transmission Mode: | Auto Online Drive | Components Space: | 0.2mm |
| PCB Clamping: | Adjustable Pressure Pneumatic | Head: | 24 |
| No. Of Camera: | 4 Sets | Power Consumption: | 8KW |
| High Light: | Lens Making SMT Mounting Machine,PCB Clamping SMT Mounting Machine,90000CPH Surface Mount SMT Machine |
||

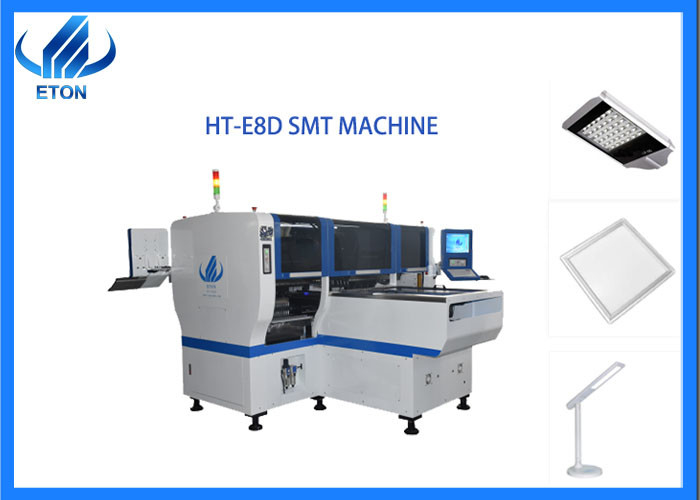

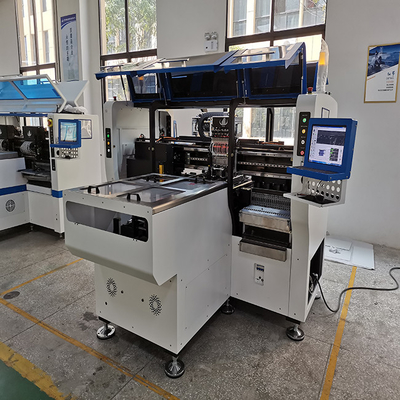

Lens Making smt machine 90000 CPH 24 head surface mount technology Machine
Product Description:
1.It has 24PCS head 48PCS feeders station and the mounting speed can reach 90000CPH.
2.The maximum PCB size is 1200*300mm.Min size 100*100mm.
3.Group picking and separately placing,separately picking and separately placing.
Advantages:
*Double module magnetic linear motor multifunctional SMT machine.
*Vision alignment flight identification, Mark correction.
*Electronic feeder feeding system.
*It can produce power drive,electric board,lens,tube, etc.
*Mounting components: LED chip, capacitors, resistors, IC, shaped components.
Specification:
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total weight | 2500kg |
| PCB size | Max:1200*300mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| Mounting height | <15mm |
| Mounting speed | 90000CPH |
| No.of head | 24PCS |
| Mounting precision | ±0.04mm |

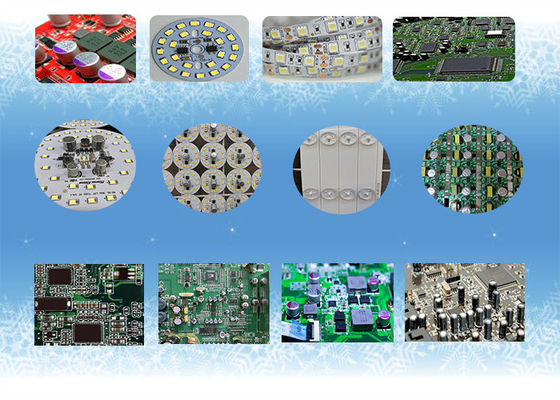

Application:
Apply to the electric board, LED flexible strip,power drive,tube,lens,etc.
Component: Min. size 0402 Max. height 15mm.
Application: Power drive,electric board,lens,DOB bulb,linear bulb,household appliance,etc.
Company Introduction:
1.10 years development history.
2.Independent R&D Exclusive Patented technology.
3.80% large and listed LED factory are our client.
4.Top 1 in high-speed pick and place machine in China.
5.We can provide you with the whole production line.
6.Our software is R&D independently.We can offer software upgrade for lifetime for free
7.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
Packaging:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Service:
We got 9 invention patents, 112 practical patents,12 software patents.
FAQ:
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: What's your delivery date?
A: The delivery date is about 30 days upon the down payment.
Q: Will you be participate the exhibition around the world?
A: Yes, our company go to many countries to participates in the exhibition,such as Egypt, India, Turkey, Delhi, Pakistan. If you have a chance to visit, you can get to know our company and our products better.
Q: What's your machine quality?
A: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
