Product Details:
Payment & Shipping Terms:
|
| Dimension (L*W*H): | 3100*2300*1550mm | Total Weight: | 1700KG |
|---|---|---|---|
| PCB Length Width: | 250mm*any Length | PCB Thickness: | 0.5-1.5mm |
| PCB Clamping: | Vacuum Adsorption, Cylinder Splint, Adjustable Track Width | No.of Feeders Station: | 68 PCS |
| No.of Head: | 68 PCS | Mounting Speed: | 250000 CPH |
| Components: | LED3014/3020/3528/5050、Capacitance, Resistance, Bridge Stack, Etc | Operating Environment: | 6 KW |

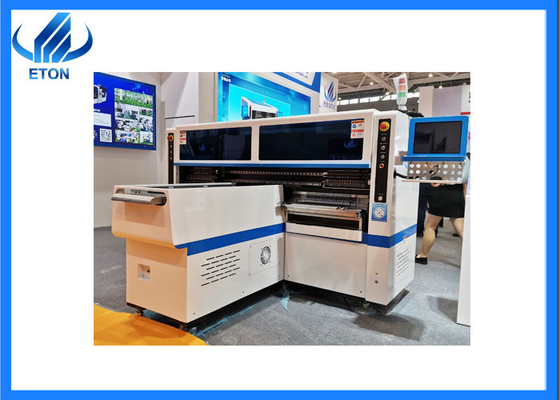

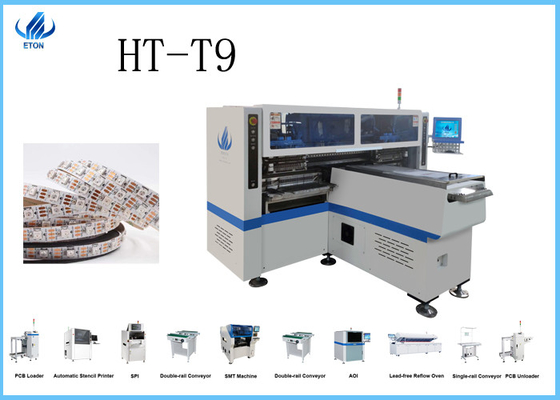

ETON High precision high speed SMT machine HT-T9 speed of 25W CPH
Machine parameters
| HT-T9 pick and place machine | ||
| Dimension | Length* Width* Height | 3100mm*2300mm *1550mm |
| Total weight | 1700kg | |
| PCB | PCB Size | 250mm*any length |
| PCB Thickness | 0.5-1.5mm | |
| PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width | |
| Mounting mode | Group to take and group to mount | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 5PCS(Digital camera) |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.02mm( repeat precision) | |
| Mounting speed | 200000-250000CPH | |
| Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc | |
| No. of feeders station | 68PCS | |
| No. of nozzles | 68PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Product Description
1. High precision. Solved the problem of throwing materials of previous machines. 5 sets of imported camera with its features of vision alignment and Mark correction to ensure.
2. High capacity. 200000CPH, to solve your troubles of low production efficiency. With its Dual-arm. Four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separatly or synchronously.
3. High technology. Automatic operation, save a lot of manpower and material resources. Exclusive Patent Technology: group to pick and group to mount. High-end magnetic linear motor +servo motor to drive X,Y Axis.
4. Technical Support. It doesn't matter if you don't know the technology, we have a professional team and professional engineers that can provide on-site services.

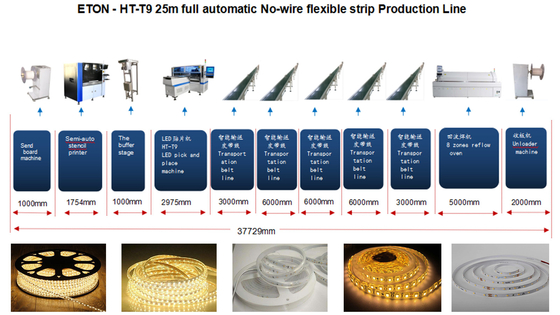

No wire flexible light strip production line

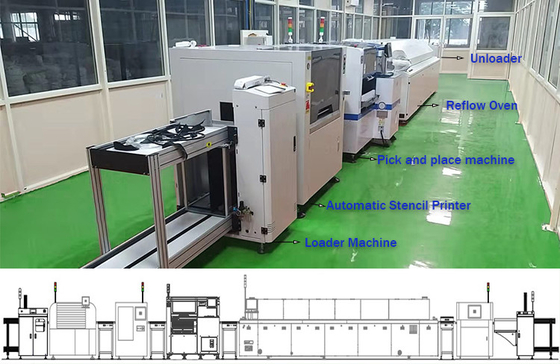

For flexible strip light, there are 0.5m, 1m, 2m, 5m, 10m, 15m, 25m,50m etc. For T9, it is suitable for making 5m, 10m,15m or more length strip light. Otherwise, we can provide the whole SMT line machines for you. This line is rich experience and will be have high capacity for you.
Our service
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After buying machine
1) 1 year free warranty
2) Visit customers regularly and gather information.
3) Provide latest information about technology and equipment.
Company

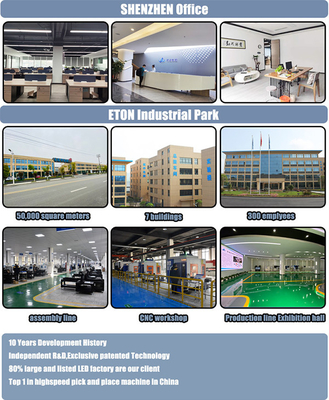

ETON over 10 years experience in SMT machines, have 52000 square meters industry park, professional R&D team and sales team; It is worth mentioning that stronger manufacturing capacity. Cause we have enough mechanical equipment, Experienced staff and engineer, get great support. Ensure the machine is high quality.
ETON machine using Vacuum wooden box packaging:
Firstly, Wrap the machine with film
Secondly, Sponge the machine
Thirdly, Use a vacuum bag to compress the air in the machine and encapsulate the machine
Fourthly, Fix the foot cup of the machine with wooden stakes
Fifth, fix the machine again with a rope
Finally, encapsulate the machine in a wooden box
Remarks:
1. Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2. Delivery time: 30 days after deposit.
3. Warranty: 1 year.(including spare parts)
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park.
