Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 3100mm | Width: | 2300mm |
| Height: | 1550mm | Total Weight: | 1700kg |
| Software: | R&D Indenpendently | System: | Windows 7 |

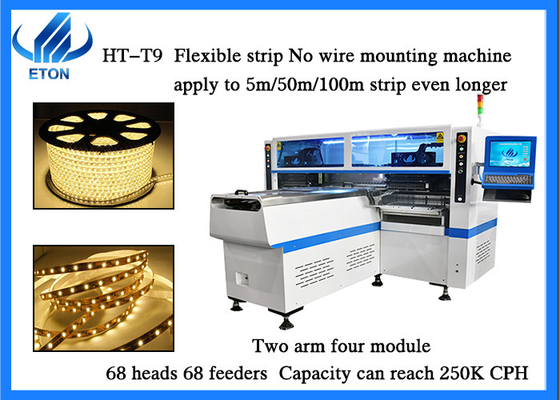

LED strip making machine 250000CPH 68 heads 68 feeders SMT pick and place machine
Product description
| 1. The special design of the board guide rail allows this model to directly produce PCB soft boards without fixtures, and the patch speed of this model is quite fast, and the fastest can reach the production capacity of 250000cph per hour. It is very used to produce roll by roll soft light strips without wires. 5m, 50m, 100m can be applicable or even longer. |
|
2. There are four modules of double patch head, with 17 suction nozzles in each group, which are produced independently. There are 68 suction nozzles and 68 feeder in total. |
|
3. Because of the particularity of the product, the production line of this model is also very different. It needs several buffer belts and buffer frames to carry and buffer, but the production capacity is very efficient. |
PCB board

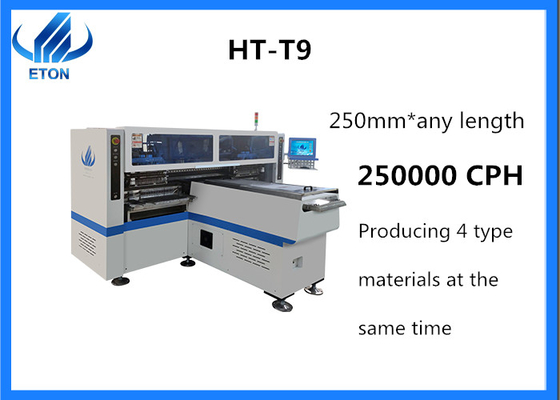

1. HT-T9 is specially used to produce soft lamp strip, so its PCB size is any length, and its width is 250mm as the standard width of soft lamp strip on the market.
2. Not only that, but also its track width is adjustable, which is very flexible in production. At the same time, it uses vacuum adsorption and cylinder splint to fix PCB board, which has strong stability.
Feature
| 1. Four kinds of materials can be grabbed at the same time, which are independent of each other and will not affect its high production capacity. The products can be pasted at one time to reduce the time cost. |
|
2. The height of mounting components is less than or equal to 5mm, which is mostly suitable for linear products because the finished products are relatively simple. |
|
3. Some parts supporting precision are international famous brands. As a result, our products are independently developed and produced, which makes our products very competitive in the market. |
Parameter
| PCB thickness | 0.5-1.5mm |
| Mounting mode | Take and paste at the same time |
| No.of camera | 5 PCS digital camera |
| No.of heads | 68 PCS |
| No.of feeders | 68 PCS |
| Mounting speed | 200000CPH-250000CPH |
| Operating environment | 20℃-26℃ |
| Conveyor transmission | Max:1000mm |
Company show
Shenzhen ETON automation equipment Co., Ltd. has been for 11 years. Since its establishment, it has focused on the R & D and production of SMT high-speed mounter and peripheral equipment. Its high-speed machine has even affected the price of LED lamp industry, and has won various certificates, such as Shenzhen high tech enterprise, 2015 industry innovation award, etc. At the same time, we also have a large factory of 50000 square kilometers and five-star after-sales service. We have cooperated with a lot of customers.
FAQ
Q1: I just want to produce 5m soft light belt. Is this machine OK?
A: Yes,1m soft light belt can also be used.
Q2: Does this machine have accurate capacity?
A: The production capacity of the machine should be analyzed according to the actual situation, such as PCB design, component size, etc. the simpler the components are installed, the faster the production capacity is.
