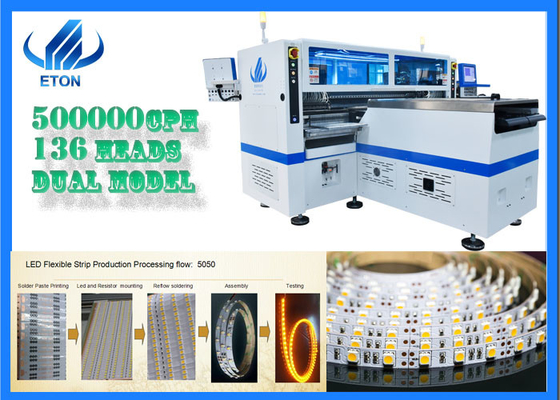

LED 3528 5050 Pick And Place Machine 500000CPH Roll To Roll Mark Correction Camera

500000CPH Smt 3528 5050 Led SMD pick and place machine for 100 meters roll to roll

Features

Diverse Functions,Efficient production

High speed modular Head,ETON Tech adjustable placement head

Apply to 3014/3020/2835/5050 resistor,capacitor,bridge rectifier,etc

High speed:500000CPH

High Productivity

Unique Design component leaking detection and individual component refill function

Ultra high speed capacity

The range of feeding is double of placement head,can produce four kinds of materials at the same time.

Application

available for 5m,50m or any length of flexible strip and roll to roll.and available for RGB,mounting components about LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.


Technical Parameter:

What is the position and role of this machine in the production line ?

Pick and place machine:The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB

stencil printer:Operate the stencil printer to print the solder paste onto the PCB

reflow oven:The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.

Conveyor:Check whether the PCBA is misaligned or shift.

Wooden vacuum packaging:

Remarks:

1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

2.Delivery time: 30 days after deposit.

FAQ
1) Do you have oversea after sale service?
We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
2) How is the training?
After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials..
3) It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and
many technology patents, and have rich experience (more than 10 years) in LED light
production line program.
5) why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
