| Dimension(L*W*H): | 3454*3035*1777mm | Total Weight: | 3100KG |
|---|---|---|---|
| Mounting Way: | Group Picking And Group Placing | Mounting Mode: | Dounble Rail+Four Groups Of Placemanet Heads |
| No.of Camera: | 10 Sets | Mounting Speed: | Dounble Side 500000CPH Sigle Side 250000CPH |
| High Light: | 500000CPH pick and place machine,Flexible Strips pick and place machine,50m High speed pick and place machine |
||

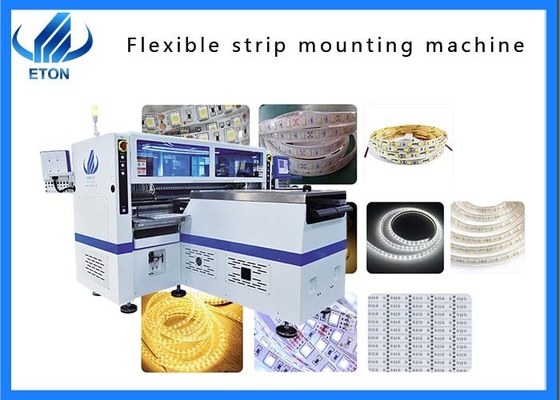

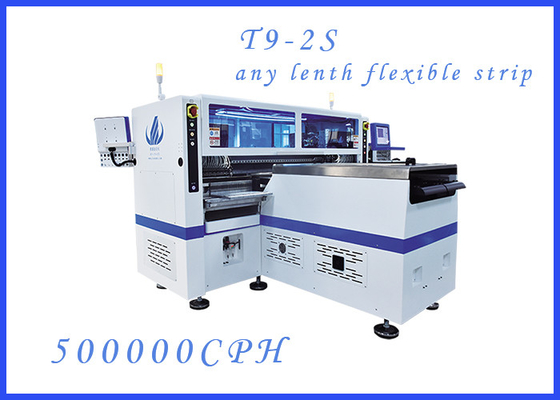

500000CPH High speed 5m,10m,50m,any length flexible strip pick and place machine roll to roll
introduction
Look, here comes the Value series. High speed integrated mounting head, suitable for the production of 5m, 10m, 50m, infinitely long roll to roll soft lamp tape, and supports band loading led3014 / 3020 / 2835 / 5050 or resistance, capacitance, bridge pile, etc,The optimal production capacity can reach 500000 CPH.
Machine features
1. Adjustable mounting head
2. Unique material leakage detection; Separate replenishment function
3. Ultra high speed mounting capacity
4. The width of the conveying platform can be freely adjusted according to different infinitely long soft light belt plates
5. Flexibly adjust the distance of the feeder mounting base to achieve group picking and group pasting, and realize the function of one pasting and two reclaiming
6. The maximum adjustable range of the feeder is twice that of the feeder, and can produce four kinds of materials at the same time
7. Intelligent feeder, which supports the electric intelligent feeder of high-speed special machine series
8. Flight identification function, without pause, detects whether there are components and the adsorption state of components to prevent installation errors
9. Automatic production of identification data, automatic correction function and replenishment function
10. Drive the clamping rod through the air cylinder to correct all the materials taken by the group
Parameter
| Model | HT-T9-2S |
| Dimension | |
| Length | 3454mm |
| Width | 3035mm |
| Height | 1777mm |
| Total Weight | 3100kg |
| PCB | |
| PCB Length Width | 250(+-10)mm*Any length |
| PCB Thickness | 0.1-0.5mm |
| PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting Mode | Group picking and group placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Production management MES system | Customized(Option) |
| Vision System | |
| No. of Camera | 10PCS ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat mounting Precision | ±0.05mm (Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | Double side 500000CPH,single side 250000CPH(Optimum speed) |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| No. of Feeders Station | Double side:136PCS(Single side:68PCS) |
| No. of head | Double side:136PCS(Single side:68PCS) |
| Power | 380AC 50 HZ |
| Power Consumption | 9.6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max Length :1000 mm |
| Transmission speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning Way | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Intelligent electric feeder with double motor |
Why choose us?
1. A strong technical team supports the continuous upgrading of machines and strong technical support from customers
2. Rich experience in SMT industry. Since ETON was founded more than ten years ago, we are a leading manufacturer of SMT machines in China
3. Strong production capacity. ETON has an industrial park of more than 50000 square meters in Jiangxi Province, with a mechanical capacity of more than 50 sets / month
4. Good professional service. Provide on-site service for engineers, support video online training, video training sharing, and replace the core parts of the machine free of charge during the warranty period. We can also provide professional SMT production line solutions.
FAQ
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I'd like to know how your machines are transported?
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of "Shenzhen high tech enterprise", "Guangdong high tech enterprise", "national high tech enterprise" and "Shenzhen famous"
