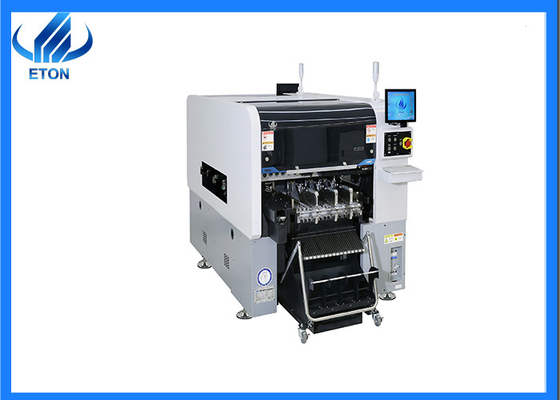

Electronic PCB Boards Pick And Place Machine SMT Production Line High Accuracy

Large Image : Electronic PCB Boards Pick And Place Machine SMT Production Line High Accuracy

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE, CCC, ISO
Model Number:	YT-202S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 80000~120000
Packaging Details:	WOODEN BOX
Delivery Time:	30 DAYS
Payment Terms:	T/T
Supply Ability:	100 SETS/PER MONTH

Contact Now

Detailed Product Description

Name:	Pick And Place Machine	Weight:	1700KG
Length:	2788MM	Feeder Stations:	64
Power:	380AC 50Hz	Components Space:	0.2MM
Mounting Height:	40MM	Power Consumption:	8Kw
Maximum PCB:	500*450MM
Highlight:	8 Kw Pick and Place Machine , 64 Feeder Pick and Place Machine , High Accuracy SMT Production Line

Electronic PCB Boards Pick and Place Machine SMT Production Line

High Accuracy

Description:

Brand: ETON

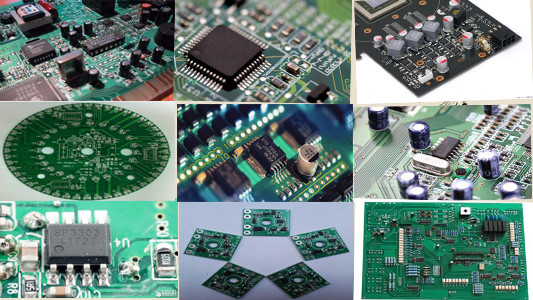

Application: Different kind of electrical PCB boards

Warranty: 1 year

PCB Length Width:Max:500*450mm Min:50*50mm

Weight:1700 kg

Power/power consumption: 380AC,50Hz/ 4kw

Technical parameters
LengthWidthHeight	278816861375mm
Total Weight	1700kg
PCB Length Width	Max:500450mm Min:5050mm
Mounting Precision	±0.02mm ,Vision alignment, Mark vision
Mounting speed	80000 CPH
Components	resistor,capacitors,shaped components,LED chips etc.
power/power consumption	380AC,50Hz/ 6kw
No.of Feeders Station	64 PCS
No.of nozzles	20 PCS
Mounting Height	<20mm
Feeding way	Intelligent double heads feeder
No.of Camera	4 sets of imported camera
PCB Thickness	0.5mm~4.5mm

Features

1. Dule Modules double systems, can produce two different products at same time.

2. 20 heads with flight identification, mark correction.

3. High precision machine for display screen, driver and other electronic PCB boards and so on.

Application:

1. PCB manufacturer

2. SMT process factory

3. PCBA making factory

4. Home applicance PCB board manufacturer

Welcomet to inquiry for more details
