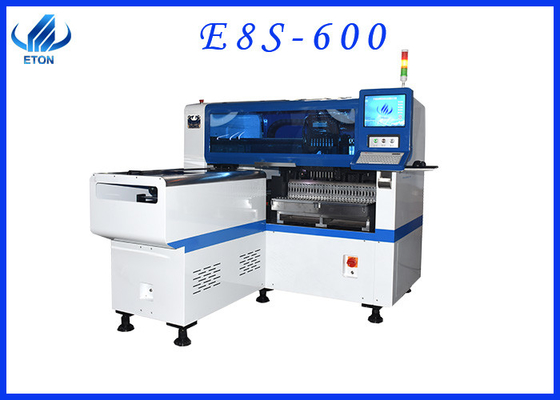

0402 45000CPH SMT SMD multifunctional pick and place machine with led light
Technical parameter
| Model | HT-E8S-600 |
| Length | 1550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1500 kg |
| PCB | |
| PCB Length Width | Max:600*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 4 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :600 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
E8s-600 introduction
Ht-e8s-600 single-mode magnatic multi-functional high-speed Mounter single-mode group 12 suction nozzles and 28 Feida high-speed mounters. The optimal production capacity per hour is 45000cph. The mountable parts include belt mounted light beads, capacitors, resistors, IC, special-shaped components, up to 17mm and at least 0402, which can be perfectly mounted with various drives, power supplies, circuit buttons, lenses, linear bulbs, home appliance control boards and other products. The patch method is to take the light paste in groups and take the light paste separately. The software independently developed by windows7 system can touch screen display, which makes it easy to operate, faster to use and better mounting effect.
APPLICATION
E8s is suitable for mounting a variety of products, such as panel lamp, display screen, driving lamp tube, lamp belt, etc.
SMT LINE
