Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Length: | 1200mm |
|---|---|---|---|
| Width: | 1930mm | Height: | 1500mm |
| Total Weight: | 2500kg | System: | Windows 7 |
| Software: | R&D Indenpendently | Warranty: | 1 Year |
| High Light: | 84 Feeders pick and place machine,double rails pick and place machine |
||

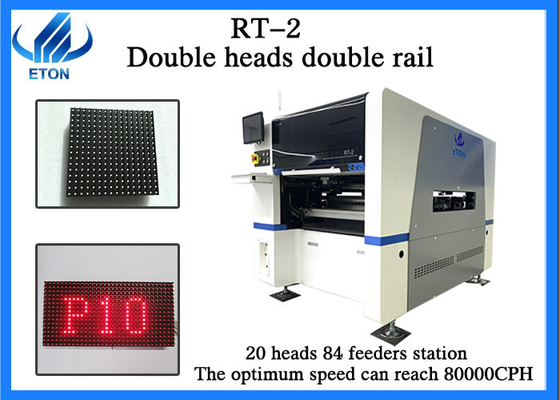

450*300MM double rails 20 heads 84 feeders LED lights pick and place machine
Product description

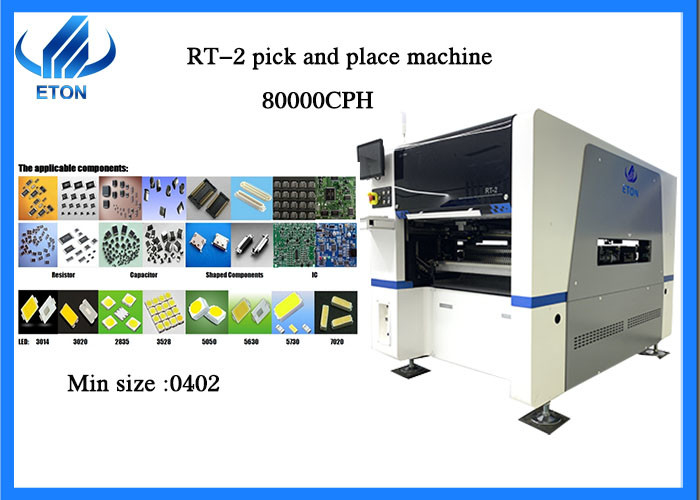

1. Multifunctional is that this product can be applied to a variety of LED lamps.such as bulb, DOB, IC, drive, panel lamp, street lamp, ceiling lamp, etc; At the same time, we can also mount components of different sizes, such as lamp beads, resistors, capacitors, IC, special-shaped components, etc. the minimum range of mounting components is 0402 and the maximum height of mounting components is 15mm. If customers need it, we also have customized services to make your rt-2 mounter.
2.High Capacity
RT-2, SMT pick and place machine, the fastest speed is 80000 Chip hour, In terms of making LED lamps, 80000cph production capacity is second to none among similar products in the market. For example, the ideal speed of Samsung sm471 is 75000cph, and the production capacity of sm481 482 is only 40000-43000cph. Compared with RT-1 under our company, one rt-2 is equivalent to two RT-1.
3.High precision
equipped with 4 sets of high-precision cameras, 2 sets of mark cameras and 2 sets of flight identification cameras. The mark camera adopts the latest three-color lighting recognition method of our company, which is applicable to any PCB board. It can be recognized even if the mark point of the PCB board is slightly oxidized. The flight identification camera identifies whether there is material leakage in the production process to ensure the accuracy of mounting.
parameter
| PCB size |
Double rail: Max size: 450*300mm Min size: 80*80mm |
|
Single rail: Max size:450*540mm Min size: 80*80mm |
|
| Mounting speed | 80000CPH |
| No.of heads | 20 PCS |
| No.of feeders station | 84 PCS |
| PCB clamping | pneumatic |
| No.of camera | 4 sets |
| Components space | 0.2mm |
Exhibition
Our exhibitions mainly include India exhibition, Pakistan exhibition, Thailand Exhibition, Egypt exhibition, Turkey exhibition, etc. the following are the photos of the exhibitions we have participated in and the different LED lamp manufacturers we have cooperated with.
Company show
Looking forward to the future and providing value, we are committed to continuously providing "smarter, more professional, more efficient and lower consumption" products and services for the market. The following are the comments of some partners on us:
| The ETON service is very special, engineers are very patient and easy to use machines.—— Fikret |
|
ETON machine mounting speed is very fast, the quality is also very good, long life, after-sales service is very comprehensive, Worth having. —— Sanjay
|
|
A very functional machine can be a lamp, a lamp and a driver, a very smart stick! — cagin |
FAQ
Q13: Is the machine I bought a complete set?
A:Yes, but it should be noted that we can give away some consumables such as suction nozzle, but you can also buy more if you need.
Q14:Will your product be safe to use?
A: Of course, we have imported limit sensors. If someone gets too close, they will stop working to ensure human safety.
Q15:What value services can I get after I buy the machine?
A:We will follow up all processes, help you clear customs and do our best to ensure your interests. At the same time, after your production is on the right track, we will also visit regularly to share your latest industry information.
