Product Details:
Payment & Shipping Terms:
|
Name: | Pick And Place Machine | Weight: | 1700KG |
---|---|---|---|
Length: | 2788MM | Feeder Stations: | 64 |
Power: | 380AC 50Hz | Components Space: | 0.2MM |
Mounting Height: | 40MM | Power Consumption: | 8Kw |
Maximum PCB: | 500*450MM | ||
High Light: | Electronic Boards SMT Pick and Place Machine,High Precision SMT Pick and Place Machine,Pick and Place Machine 8 Kw |

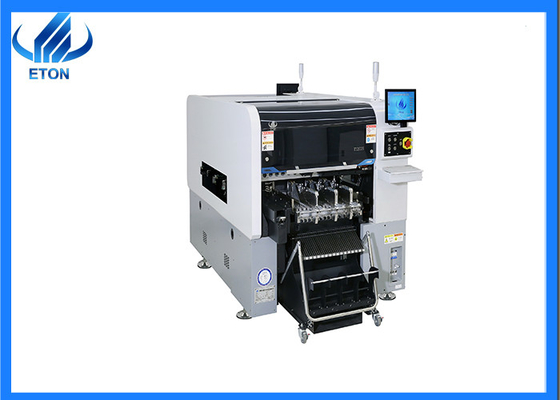

Electronic Boards SMT Machine SMD Production Line High Precision
Description:
Brand: ETON

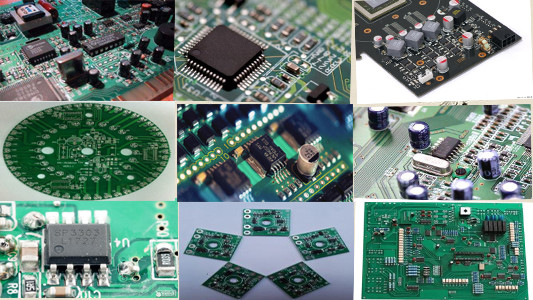

Application: Different kind of electrical PCB boards
Warranty: 1 year
PCB Length Width:Max:500*450mm Min:50*50mm
Weight:1700 kg
Power/power consumption: 380AC,50Hz/ 4kw
Technical parameters | |
Length*Width*Height | 2788*1686*1375mm |
Total Weight | 1700kg |
PCB Length Width | Max:500*450mm Min:50*50mm |
Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
Mounting speed | 80000 CPH |
Components | resistor,capacitors,shaped components,LED chips etc. |
power/power consumption | 380AC,50Hz/ 6kw |
No.of Feeders Station | 64 PCS |
No.of nozzles | 20 PCS |
Mounting Height | <20mm |
Feeding way | Intelligent double heads feeder |
No.of Camera | 4 sets of imported camera |
PCB Thickness | 0.5mm~4.5mm |
Features
1. Dule Modules double systems, can produce two different products at same time.
2. 20 heads with flight identification, mark correction.
3. High precision machine for display screen, driver and other electronic PCB boards and so on.
Application:
1. PCB manufacturer
2. SMT process factory
3. PCBA making factory
4. Home applicance PCB board manufacturer
Why we are guaranteed to cooperate with you?
1: ETON is the largest and top manufacturer of SMT machines in China, working with ETON is surely
guaranteed. No matter the services, products or experiences, we can provide you all the best.
2: ETON as the top brand, we have worked with many companies in this field. We can share what we
know. About the newest technology, newest products or newest development trend to you. Or helping
your company go fast and go well.
3: ETON is a very big company, you don’t be worry about your partner disappeared one day and your
machines are become orphan. Investment in exchange for failure.
How can we get the installation and training well?
Usually we will send our engineer to your factory to install and train your people. And our engineer won’t
come back until your people learn all process and do well.
At this special covid period, if we don’t have local engineer in your country, we will also guide one step by one
step with your team by wechat or other online ways, taking video or other measures and arrange one-to-one
engineers. To support you fast and best.
