Name: | Pick And Place Machine | Weight: | 1700KG |
---|---|---|---|
Length: | 2788MM | Feeder Stations: | 64 |
Power: | 380AC 50Hz | Components Space: | 0.2MM |
Mounting Height: | 40MM | Power Consumption: | 8Kw |
Maximum PCB: | 500*450MM | ||
High Light: | Electronic Boards SMT Pick and Place Machine,50 Hz SMT Pick and Place Machine,double systems Pick and Place Machine |

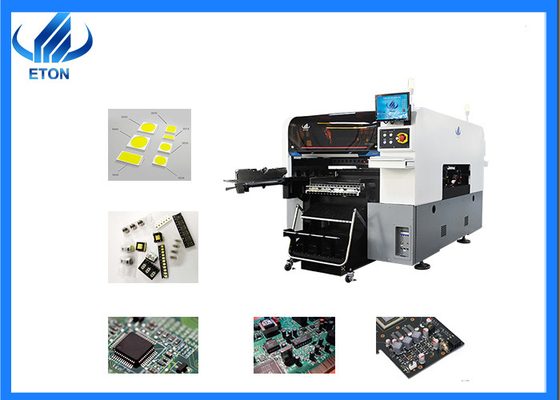

Electronic Boards SMT Pick and Place Machine LED Production
Line High Precision
Description:
Brand: ETON

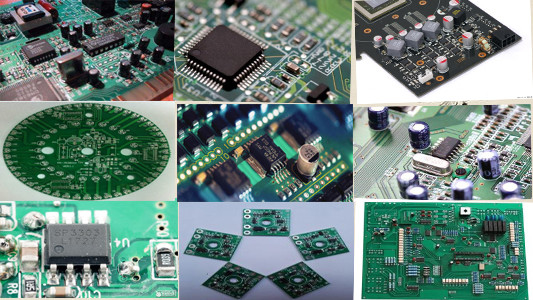

Application: Different kind of electrical PCB boards
Warranty: 1 year
PCB Length Width:Max:500*450mm Min:50*50mm
Weight:1700 kg
Power/power consumption: 380AC,50Hz/ 4kw
Technical parameters | |
Length*Width*Height | 2788*1686*1375mm |
Total Weight | 1700kg |
PCB Length Width | Max:500*450mm Min:50*50mm |
Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
Mounting speed | 80000 CPH |
Components | resistor,capacitors,shaped components,LED chips etc. |
power/power consumption | 380AC,50Hz/ 6kw |
No.of Feeders Station | 64 PCS |
No.of nozzles | 20 PCS |
Mounting Height | <20mm |
Feeding way | Intelligent double heads feeder |
No.of Camera | 4 sets of imported camera |
PCB Thickness | 0.5mm~4.5mm |
Features
1. Dule Modules double systems, can produce two different products at same time.
2. 20 heads with flight identification, mark correction.
3. High precision machine for display screen, driver and other electronic PCB boards and so on.
Application:
1. PCB manufacturer
2. SMT process factory
3. PCBA making factory
4. Home applicance PCB board manufacturer
How can we get the installation and training well?
Usually we will send our engineer to your factory to install and train your people. And our engineer won’t
come back until your people learn all process and do well.
At this special covid period, if we don’t have local engineer in your country, we will also guide one step by
one step with your team by wechat or other online ways, taking video or other measures and arrange
one-to-one engineers. To support you fast and best.
Can you share the raw materials suppliers when we need?
We are the largest manufacturer of SMT machines in China. We has occurred 85% market in China and
has exported our machines to India, Vietnam, Korea, Japan, Turkey, Tunisia, Egypt etc more than 20
countries and areas.
So we cooperate with many clients. And has many resources of the raw materials also. If you need our
help on raw materials then we can share our resource to support you well.
But at resent I think the most important thing for you is to confirm which types of machines you want.
Cause if no machines, then no manufacturing and you no need raw materials to production.
