Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Length: | 2154mm |
|---|---|---|---|
| Width: | 1376mm | Height: | 1762mm |
| Software: | R&D Indenpendently | Off Line Programming: | Available |
| System: | Windows 7 | Warranty: | 1 Year |
| High Light: | PCB SMT pick and place machine,0201 SMT pick and place machine,pick and place machine Windows 7 |
||

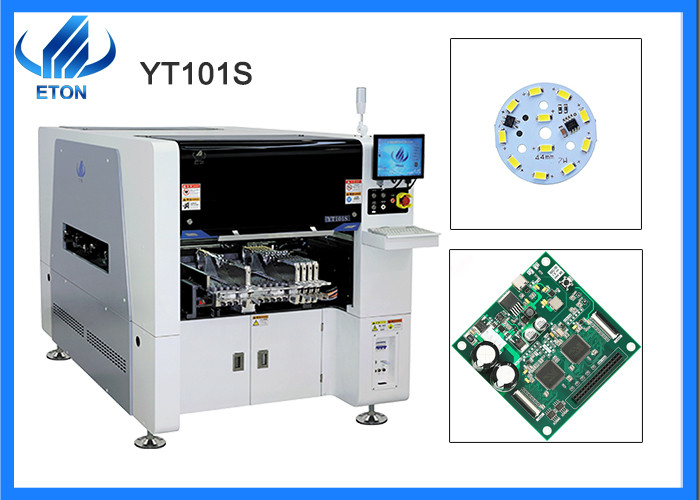

40000CPH 0201 10 heads 16 feeders driver PCB SMT pick and place machine
Product description
| YT101S is one of the latest research achievements of our company this year. It is a high-speed universal integrated mounting head that does not need to be replaced and supports 0201-40*40mm packaging materials |
| Under the optimal conditions, the production capacity can reach 40000CPH. |
Feature
| The ultimate host with three characteristics, a new fixed flight identification camera, with identification components corresponding to 40*40mm, can identify ball grid arrays such as BGA or GSP. |
| Vacuum sensing device, each suction nozzle has an independent detection function, which improves the stability and reliability of the equipment. |
| Ultra high speed mounting capacity of products at the same level. |
| Support YT series universal double head intelligent feeder, and realize stable and accurate feeding by optically correcting the feeding position. |
Function
| Achieve stable production. |
| Adopt new self-developed high-precision mounting head. |
| High speed and high-precision head flying racket for reclaiming to improve mounting speed and accuracy. |
| Equipped with independent vacuum detection function of suction nozzle to better ensure the stability of reclaiming. |
| Offline programming function to shorten line change cycle. |
| The software has AI intelligent learning and automatic optimization functions. |
Parameter
| Max PCB size | 500*350mm |
| Min PCB size | 50*50mm |
| PCB thickness | 0.5-4.5mm |
| Rail | Rail 1 is fixed |
| No.of camera | 2 sets |
|
Mounting height
|
≤20mm |
| Mounting speed | 40000CPH |
| No.of head | 10PCS |
Application
YT101S can be applied to components as small as 0201 and as large as 40mm, and can also be mounted with BGA, CSP and other ball grid arrays.
The finished products are not only led lamps, but also more complex PCBA boards, such as the more accurate display P1.5, etc
Company show
Shenzhen ETON automation equipment Co., Ltd., established in 2011, is a manufacturer and process solution provider focusing on the R & D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment, such as LED lamp mounter, automatic visual printer, automatic high-speed dispensing machine, etc. The products are easy to operate and the follow-up service is first-class. We have cooperated with many LED lamp manufacturers all over the world.
FAQ
Q1: What value can I get from buying your machine?
A1: From the perspective of value, it can save your time and efficiency cost, and we can also provide you with services, such as lifelong free upgrade of software, etc.
Q2: What are the advantages of your products?
A2: Our products have the advantages of speed, accuracy assurance, high-quality after-sales service, highly professional technicians and consultants, etc.
