Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 2700mm | Width: | 2300mm |
| Height: | 1550mm | Total Weight: | 1700kg |
| Max PCB Length: | 1200mm | PCB Thickness: | 0.5-5mm |

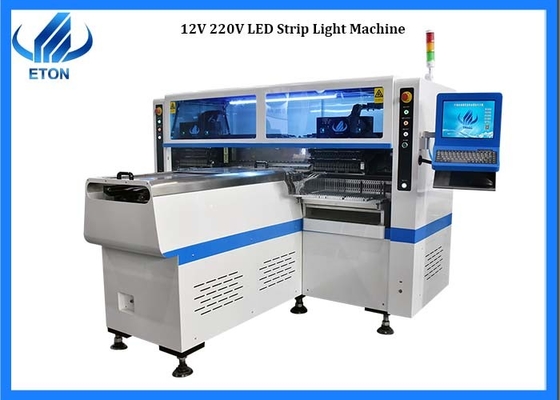

200000CPH 68 heads 68 feeders LED tube neon strip SMT pick and place machine
Product description
| The double head magnetic levitation led high-speed chip mounter can mount four different materials at the same time without affecting the high production capacity. The fastest production capacity is between 200000-250000cph. |

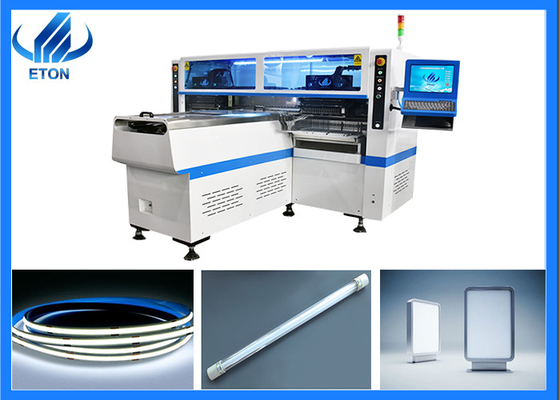

| It is suitable for 0.6-1.2m hard lamp plate and 0.5-1m soft lamp strip. It can also produce 5-10m soft lamp strip through the back-end welding process. |
| The double patch head has four modules, each group has 17 suction nozzles, which can be pasted with 2-4 kinds of materials at the same time. A single disc can be pasted, and the same disc is always pasted on the same light strip. |
| It has the function of automatic material replenishment and automatic correction, and can be pasted with RGB |
Feature
Other advantages
Mounting component range: band mounted LED 3014/3020/3528/5050 or capacitance, resistance, bridge stack, etc.
Mounting element height ≤ 5mm.
Parameter
| Length: | 2700 mm |
| Width: | 2300 mm |
| Height: | 1550 mm |
| Total weight: | 1700 kg |
| Mounting speed: | 200000-250000 CPH (optimum) |
| No.of heads: | 68 PCS |
| No.of feeders station: | 68 PCS |
| Feeding way: | Electric feeder with double motor |
| Components space: | 0.5 mm |
| Components: | LED 3014 /3020 /3528 /5050 and resistor,capacitor, bridge rectifiers. |
| Conveyor transmission: | Max length: 1200 mm |
Company show
ETON is not only in the leading position in the field of photoelectric high-speed mounter, but also has made a breakthrough in the field of SMT high-speed mounter. It has successfully developed a number of high-cost SMT high-speed universal mounter. Its products are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries.
Service
FAQ
Q1: Is the machine I bought a complete set?
A:Yes, but it should be noted that we can give away some consumables such as suction nozzle, but you can also buy more if you need.
Q2:Will your product be safe to use?
A: Of course, we have imported limit sensors. If someone gets too close, they will stop working to ensure human safety.
