Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Speed: | 250000CPH |
|---|---|---|---|
| Feeders: | 68 PCS | Components: | LED 3014/3020/3528/5050 Resistor Capacitors |
| PCB Size: | 1200*330mm | Position Mode: | Optical |
| Camara: | 5 PCS | Power: | 380V |
| High Light: | 250000CPH PCB Pick And Place Machine,LED Lamp Pick And Place Machine,LED Lamp pick and place equipment |
||

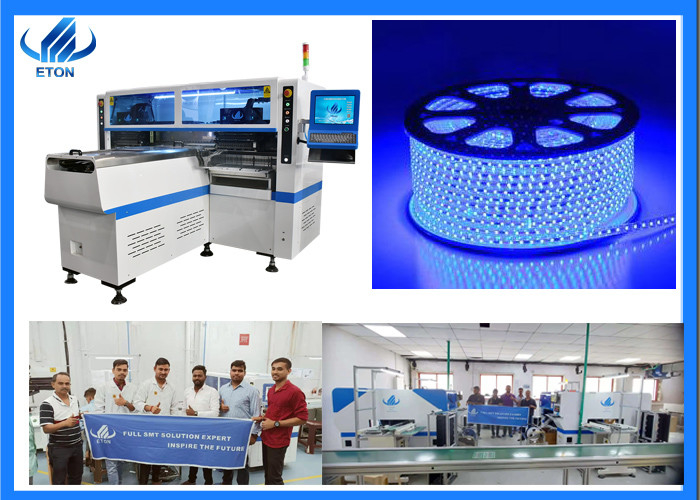

high precision 1200mm PCB 250000CPH pcb pick and place machine for led lamp
Details of SMD mounitng machine
1.HT-F9 pick and place machine professional high speed mounter apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.
2.Mounting components includes LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers.
3.HT-F9 PICK AND PLACE MACHINE professional high speed mounter can producing with 2~4 types of materials with high capacity,available for board with any proportion of LED chip and resistors.
4.Two mounting modules ,18 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
5.Exclusive patent technology :group to take and group to mount .
Technical parameter of SMT machine:
| PCB | PCB length width | Max:1200*330mm min:80*330mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 250000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 68PCS | |
| No.of nozzles | 68PCS | |
| Power | 220AC 50HZ | |
| Power consumption | 5KW | |
| Conveyor transmission | Belt drive | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| Position mode | Optical | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON |
PICK AND PLACE MACHINE DETAILS
Wooden vacuum packaging:
Our Services in SMT production line
Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Eton Purpose: To create value for customers, creating benefits for society.
Eton Mission: Professional,Excellent technology,Share the results.
Eton goal: To create a national brand,build international Chinese enterprise.
Eton purpose: To create value for customers,creating benefits for society.
FAQ
1.Are you a trade company or a manufacturer?
ETON is a manufacturing and process solution provider focusing on R&D, production ,sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
2.what can you buy from us?
Automatic stencil printer,semi-automatic stencil printer,SMT pick and place machine,reflow oven,conveyor etc.
3.It’s hard to use the machine?
The machine is very intelligent and easy to operate. the software is also produced by our company, so we know how to make it smarter and operate more friendly.
