Product Details:
Payment & Shipping Terms:
|
Name: | Pick And Place Machine | Warranty: | 1 Year |
---|---|---|---|
Length: | 3100mm | Width: | 2300mm |
Height: | 1550mm | Total Weight: | 1700kg |
Software: | R&D Indenpendently | System: | Windows 7 |
High Light: | LED strip PCB board mounting machine,flexible strip PCB board mounting machine,68 head SMT pick and place machine |

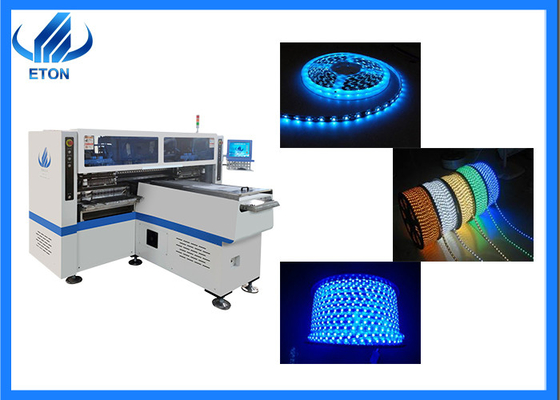

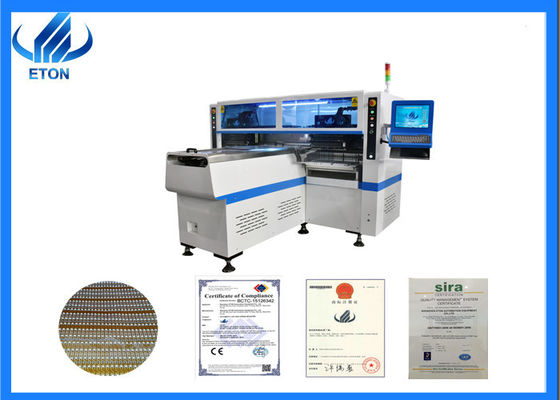

LED flexible strip PCB board mounting machine SMT pick and place machine with 68 head 68 feeder
Product description
T9 is a placement machine specializing in the production of soft light strips. The speed is very fast. Two robotic arms work at the same time, and the fastest production capacity can reach 250,000CPH.
A total of 68 nozzles, 68 feeders, and exclusive patented technology make this machine unparalleled in speed.
Feature
1 The wiring is unique, because the production of flexible light strip PCB board is infinitely long, but the speed of the placement machine cannot be infinite, so it is necessary to add some buffer racks and buffer belts as buffers during wiring for better production.
2 The guide rail is unique, and the guide part is designed to be solid, because the PCB board for the soft light strip is too soft. If it is designed to be hollow, other LED lights can be used, but for the soft light strip, a fixture is required. So this is a machine specially made for the production of flexible light strips.
3 The production capacity is very fast, creating more benefits for you in the limited space.
Parameter
PCB size | 250mm*any length |
PCB thickness | 0.5-1.5mm |
PCB clamping | Vacuum adsorption,cylinder splint,adjustable track width |
Mounting mode | Group pick and Group place |
Mounting height | ≤5mm |
Mounting speed | 200000-250000CPH |
No.of head | 68 PCS |
No.of feeder | 68 PCS |
Main part
The key components are selected from the top brands in the industry, with excellent quality, and the use of linear motors is far greater than that of servo motors in terms of accuracy and service life.
Why choose us?
As the leader of SMT manufacturers in China, ETON has more than 20 years of R&D experience, mature product line, and professional team.
We will provide each customer with exclusive services that belong to you, including the matching of production lines and the scope of after-sales service.
Provide high-quality after-sales service
1 Free replacement of any damaged parts within the one-year warranty period
2 Our engineers provide free door-to-door service to help you install the machine and train the staff until you produce smoothly, and our machine is also very simple
3 Lifetime free upgrade of machine software department
Package
We usually use vacuum wooden cases to pack the products. Vacuum can be very shock proof and ensure the integrity of the products. If you have special requirements for packaging, we can also realize it for you.
FAQ
Q1:Is there any difference between your multi-function machine and your special machine?
A: The multi-function machine can mount a variety of products, and the special machine is best to mount lamp tubes and strips. The biggest difference belongs to the difference of function and production capacity.
Q2: Is the machine I bought a complete set?
A:Yes, but it should be noted that we can give away some consumables such as suction nozzle, but you can also buy more if you need.
