| MODEL: | YT101S | Dimension(L*W*H): | 2154*1376*1762(mm) |
|---|---|---|---|
| Total Weight: | 1700kg | No.of Camera: | 2 Sets |
| Mouting Height: | <=20mm | Mouting Speed: | 40000CPH |
| No.of Heads: | 10PCS | No.of Feeders Station: | 32PCS |
| High Light: | 32PCS Feeders LED Display Making Machine,SMT Line LED Display Making Machine,SMT Line led screen making machine |
||

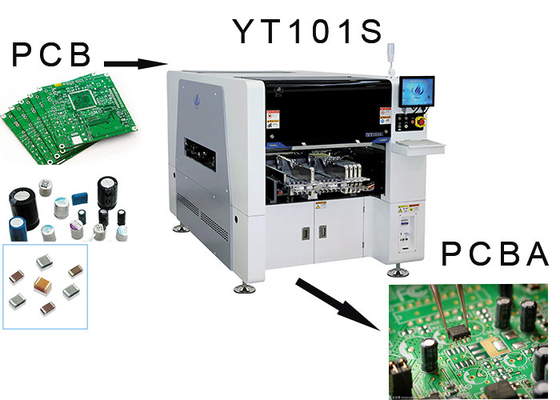

Display screen making machine SMT line
Yt101s advantages
1. If you want to produce the display screen, please recommend the machine to me. If you want to produce the display screen, we have the latest glory series. We recommend yt101s to you. The maximum PCB size suitable for yt101s is 500mm*350mm
The thickness of PCB board reaches 0.5-4.5mm, which is suitable for more precise products. Because the display screen has high requirements for accuracy, yt101s just meets this requirement

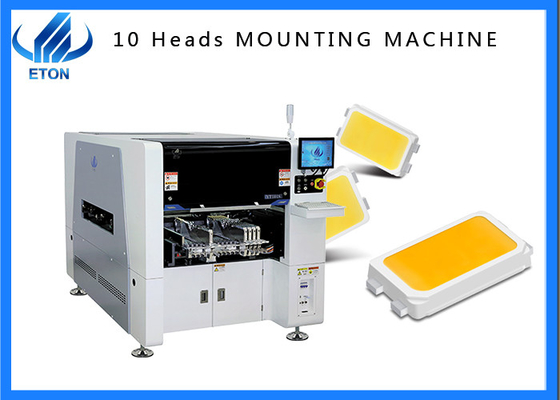

2. What is the reason for the high accuracy of yt101s? The fixed flight identification camera used by yt101s can identify components with size less than 40*40mm or height less than 20mm with high speed and high precision. IC tray support frame is optional Yt101s has 10 heads, and each head is controlled by an independent servo motor. The X and Y axes adopt linear motor, which makes the mounting accuracy higher, the speed faster, the service life longer, the production stable, and the production cost higher
3. About the products we provide, we provide SMT whole line equipment, for example; Loading machine, docking station, reflow soldering, printing machine, transplanter, AOI, SPI, unloading machine, etc
4. About the differences and advantages between semi-automatic production line and full-automatic production line, semi-automatic production line is cheap, covers less area, and requires a little more labor, generally requires 2-3 people. Full automatic production line requires a larger site, and the price is more expensive than semi-automatic production line. If you are skilled, one person is enough, and the production efficiency is faster than semi-automatic production line For the production of display screen, because the installation of display screen requires high precision, it generally chooses the full-automatic production line
Parameter
| 型号/ Model | YT101S |
| 线路板/PCB | |
| PCB板尺寸/PCB size(L* W) |
最大尺寸Max size: 500mm*350mm 最小尺守Min size: 50mm*50mm |
| PCB板厚度/PCB thickness | 0.5-4.5mm |
| PCB板固定方法/PCB clamping | 气缸夹板,轨道宽度可调/Cylinder clamping, track width adjustable |
| 定轨方式/Rail | 1 轨固定/ Rail 1 is fixed |
| 系统/System | Windows 7 |
| 软件/Soft ware | 自主研发/R&D independently |
| 生产管理MES系统/Production management MES system | 提供要求定制(选配项)/Customized(Option) |
| 离线编程/Off-line programming | 有/Available |
| 相机数量/No. of camera | 2套/2 Sets (数字相机 Digital camera ) |
| 头部飞拍识别元器件/Head flight vision recognition component | |
| 视觉对位+MARK校正/Vision alignment+Mark correction | |
| 重复精度/Repeat precision | ±0.02mm |
| 贴片高度/Mounting height | w20mm |
| 贴片速度/Mounting speed | 40000CPH (本公司最优条件下)(Optimum speed) |

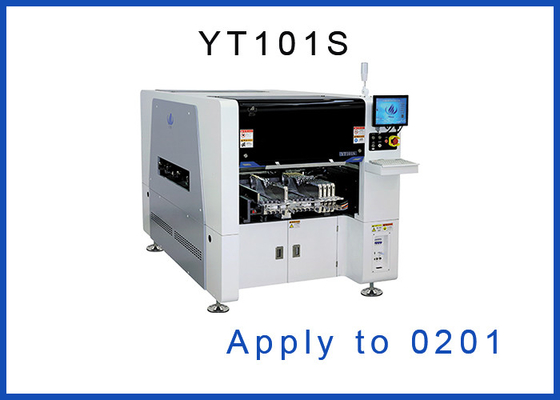

| 贴装零件范围/Components range | 0201 ~40*40mm封装料及IC料/Min 0201 ~40*40mm packages and IC etc. |
| 使用电源/Power | 380AC 50HZ 4KW |
| 使用环境/Operating environment | 23°C±3°C |
| 传输方向/Transmission direction | 单向(左—右或右一左)/Single ( left—>right or right—>left) |
| 传送方式/Transmission mode | 在线/Online drive |
| 定位方式/Position mode | 光学/Optica I |
| 耗气量/Ai「consumption | 0.4-0.6mpa ( 4-6kgf/cm2) 150N/min |
| 电气控制/Electrical control | ETON 自主研发/Independent research and development by ETON |
| 运动控制卡模块 1 套/Motion control card module 1 set | ETON 自主研发/Independent research and development by ETON |
| XYZ轴驱动方式/X,Y,Z Axis drive way | 高端磁悬浮电机+伺服电tTL/High-end magnetic linear motor +Servo motor |
| 可放置送料器数m/No. of Feeder station | 站位 16PCS,可装物料32盘/Station: 16pcs,Tape「eel packages 32pcs) |
| 吸嘴安装数S/No. of Heads | 10pes |
| 送料方式/Feeding way | 双头智能送料器/Intelligent Double head Feeder |
| 定制/Customized | 定制分段贴装2米/Customized Placement 2M sectional |
service
We provide free services: free door-to-door installation service, free replacement service for all parts damaged during the warranty period, online video teaching support 24 hours a day, and lifelong free software update service. Our local offices and engineers in India and Turkey provide very convenient services.
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
