Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 3454mm | Width: | 3035mm |
| Height: | 1777mm | Total Weight: | 3100kg |

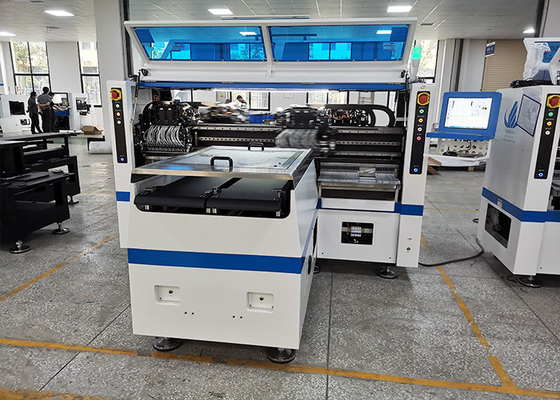

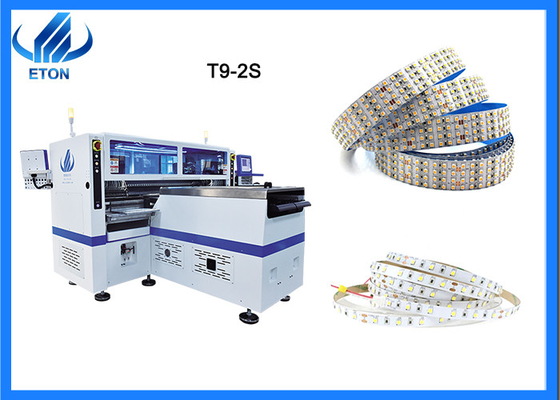

T9-2S SMT pick and place machine with 5m,10m,100m LED No wire strip lights
Product description
| T9-2S led Strip SMT pick and place machine, two sets of systems, can produce two different PCB boards at the same time; four robotic arms of the placement machine, a total of 136 nozzles, and 136 feeders, the intelligent feeder has higher feeding accuracy and faster speed ! |
| In the production line configuration, one placement machine and reflow soldering can be shared. Compared with two production lines, it not only saves the production space, but also saves a lot of investment under the same production capacity. |
Feature
| High productivity | ETON Tech Adjustable Placement Head: Component picking position can be adjusted according to PCB pad pitch,min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor,capacitor, bridge rectifier etc.wide component range. |
| Unique Design Component Leaking Detection And Individual Component Refill Function: Recognition camera record the component leaking position of PCB,and fill the missing component accordingly. | |
| Ultra-high-speed Capacity: The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH. | |
| Flexible production | Adjust the conveying platform according to various roll to roll strip,range 250 ± 10mm,the max length range is 1M per cycle. |
| The distance of feeder station can be flexibly adjusted to achieve group picking and group placing,so as to realize the function of two time picking and once placing. | |
| The range of feeding station is double of placement head,can produce four kinds of materials at the same time | |
| Intelligent electric feeder,supporting high-speed machine series | |
| High performance | Automatic production with identification data,correction and fill missing component automatically. |
Parameter
| PCB size( Width*Length) | 250(± 10)mm*Any length |
| PCB thickness | 0.1 -0.5mm |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail + Four groups of placement heads |
| No. of camera | 10 sets /Vision alignment+Mark correction |
| Mounting speed | Double side:500000CPH,single side:250000CPH(Optimum speed) |
| Power | 380AC 50HZ |
| Power consumption | 9.6KW |
About us
ETON is not only in the leading position in the field of photoelectric high-speed mounter, but also has made a breakthrough in the field of SMT high-speed mounter. It has successfully developed a number of high-cost SMT high-speed universal mounter. Its products are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries.
Service
After sales service refers to all the services we provide when you receive the products. We have a special after-sales department to serve you, such as guiding installation, training employees, regular follow-up, sharing industry information and so on.
Exhibition
Our exhibitions mainly include India exhibition, Pakistan exhibition, Thailand Exhibition, Egypt exhibition, Turkey exhibition, etc. the following are the photos of the exhibitions we have participated in and the different LED lamp manufacturers we have cooperated with.
