Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | PCB Thickness: | 0.5~5 Mm |
|---|---|---|---|
| Total Weight: | 1250kg | Feeders: | 64 PCS |
| Dimension: | 1200*1930*1500mm | PCB Size: | 450*300mm |
| Warranty: | 1 Year | Nozzles: | 20 PCS |
| Application: | SMT Production Line,LED Pick And Place,smd Pick Place | Name: | LED Chip Mounter |
| Weight: | 2500KG | Applicable Components: | 0402,SOP,IC,0805 |
led bulb manufacturing machine,led bulb assembly,automatic pick and place machine,pick and place machine smt,smd led mounting machine,chip mounter machine

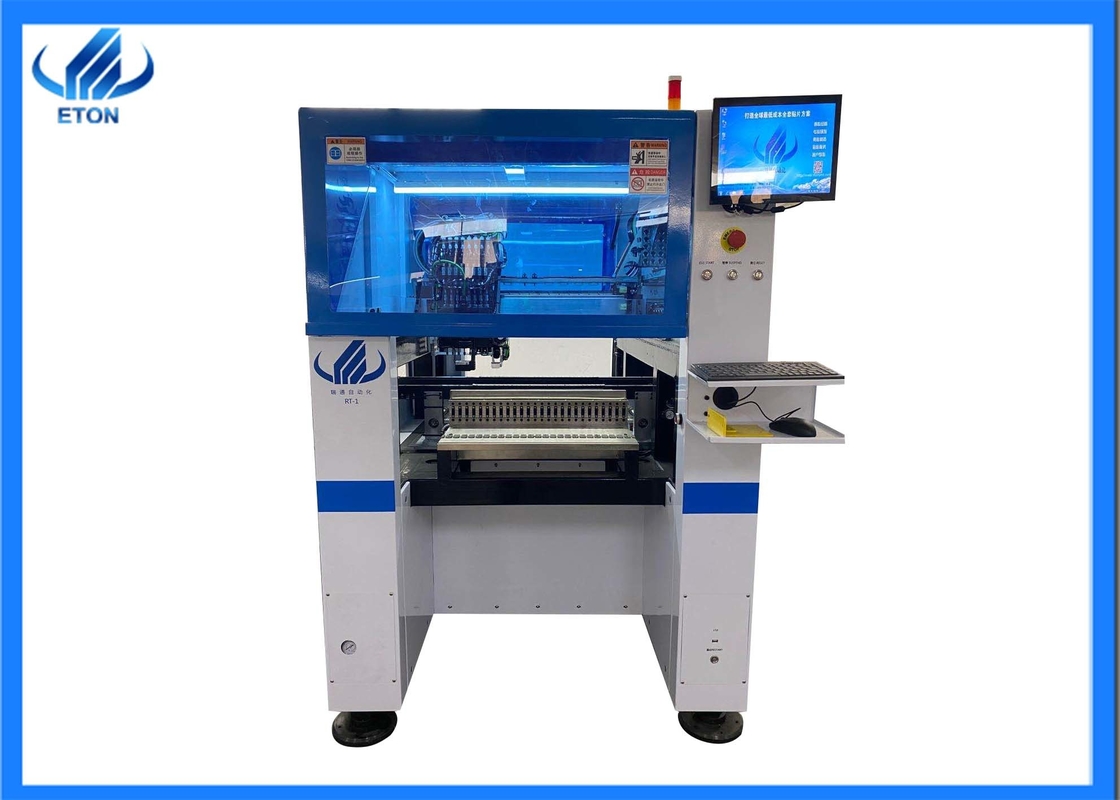

Features of smd led mounting machine
High precision
Can mounting 0402 components,mounting precision reach 0.04mm,Magnetic linear motor and servo motor driver by XYZ Axis.
High capacity
The capacity reach 60000~70000CPH,with 20PCS heads and 64PCS feeder stations.Double module,save time and space.
R&D Software
Independent software development, Free upgrades for life.
Maintenance&Installation
Free Maintenance&Installation,we have India and Turkey local engineers.24 hours online service.
Our Services
Technical parameter of led bulb manufacturing machine
| Dimension | |
| Length | 1200mm |
| Width | 1930mm |
| Height | 1500mm |
| Total Weight | 2000kg |
| PCB | |
| PCB Length Width | Max:450*300mm Min:80*80mm |
| PCB Thickness | 0.1-6mm |
| PCB Clamping | Pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera4 | PCS |
| Accurate image recognition | |
| Vision alignment, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | ≦15mm |
| Mounting Speed | 67000 CPH |
led bulb manufacuturer machine
SMT line
ETON as the leading manufacturer of global optoelectronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.
Application of SMT line
For SMT factory setup,we can do for you:
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
FAQ
1,How many cameras does the machine have?
There are two sets of imported cameras.Using exclusive patent technology:vision for the flight identification,Mark correction.
2,What is the direction of transmission of machines?
The transmission direction of this machine is both direction.
3.What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
4.What is the mounting mode?
Group to picking and separate to placing,Separate to picking and separate to placing.
5.Is your software interface in English?
English interface and Chinese interface are both available.
