| Name: | Pick And Place Machine | Place Of Origin: | China |
|---|---|---|---|
| Power: | 380AC 50HZ | Drive Way: | High-end Magnetic Linear Motor +servo Motor |
| Mounting Height: | <36mm | Mounting Speed: | 90000CPH |
| Power Consumption: | 8KW | Dimension: | 2788*1686*1375mm |
| Total Weight: | 2100kg | Visual Camera: | 2 Sets Of Imported Camera |
| Warranty: | 1 Year |
| PCB length width |
Double module&Double rail: MAX:500x300mm(Non-omnidirectional 640x300mm) MIN:50x50mm Single module&Single rail: MAX:500x540mm (Non-omnidirectional 640x540mm) MIN:50x50mm |
| Components |
0201 IC 50x50mm Mounting Height:20mm |
| Mounting speed |
70000 CPH (Under the best conditions for our company) |
| Mounting precision | ±0.03mm(Repeat precision) |
| No. Of feeders station | 32PCS(Double material feeder, can load 64 trays of material) |
| Power | AC380 50Hz |
| Air supply | 0.4-0.6Mpa (4-6Kgf/㎡) |
| Vacuum detection | Independent vacuum detection of reclaiming material |
| Dimension | L 2795 X W 1497 X H 1687 |
| Total weight | 1700kg |
Features of SMT led pick and place machine
Brand new self-developed high-prec1sion placement head
• Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy
• The placement head adopt independent vacuum detection.improve placement performance
• Off-line programming.save time of changeover cycle
• Software Al intelligent learning function and automatic optimization function
Optical Recognition Camera
Components with size less than 40• 40mm or height less than 20mm can be used to high-speed and high-precision identification
Mark recognition:High-precision Mark recognition system, adopt 3-color illum1nat1on recognition.apply to any shape Mark and LENS(Blu-ray scan), wider range of applications
Fixed flight vision camera:High-speed flight vision camera.quickly captures multiple head images at once, perform visual calibration of image pos1tion,alignment Correction ,adjustable light source brightness

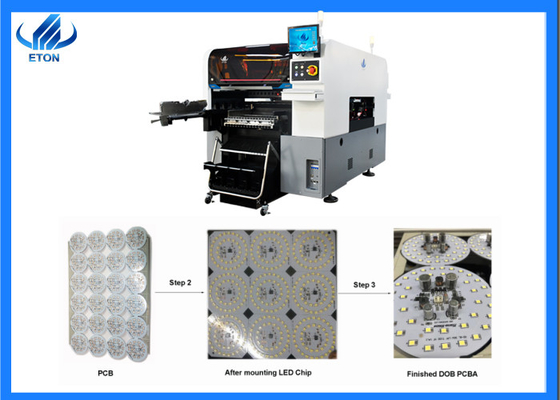

Pictures of led lights assembly machine
ETON SMT machines
ETON are the manufacturer of SMT Machine,we can provide a whole SMT line solution and a whole SMT line machines.include PICK AND PALCE MACHINE,STENCIL PRINTER,REFLOW OVEN,CONVEYOR,loader machine,unloader machine,etc
SMT basic process:
stencil screen--mounting part--reflow soldering--testing--rework
stencil screen: Its function is to leak the solder paste onto the PCB pads to prepare for the soldering of components. The equipment used is a stencil printing machine, located at the forefront of the SMT production line.
Mounting: Its function is to accurately mount the surface components to the fixed position of the PCB. The equipment used is a placement machine, located behind the stencil printing machine in the production line.
Reflow soldering: Its function is to melt the solder paste, so that the surface assembly components and the PCB board are firmly bonded together. The equipment used is reflow soldering and is located behind the placement machine.
Inspection: Its function is to inspect the welding quality and assembly quality of the assembled PCB board.
Rework: Its function is to rework the PCBA that has been detected to be faulty. The tools used are soldering iron, rework station, etc. Configured at any position in the production line.
Services of ETON
1: What about the shipping methods?
Our mode of transportation is by sea, air and road.
2:What’s your delivery time?
Usually 30 days after deposit, if we have inventory, the time can be brought forward.
3:How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4:How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
5.Who is your client?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
