Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| PCB Size: | 250mm*any Length | Mounting Speed: | 500000CPH |

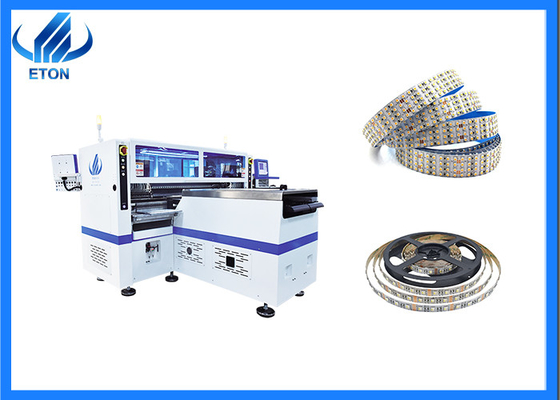

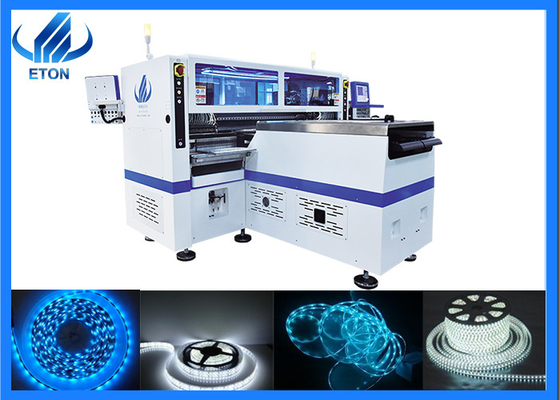

SMT pick and place machine with fast capacity for no wire LED strip
HIGH PRODUCTIVITY
ETON Tech Adjustable Placement Head, 3014/3020/2835/5050 resistor,capacitor, bridge rectifier etc.wide component range.
Unique Design Component Leaking Detection And Individual Component Refill Function, Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
Ultra-high-speed Capacity, The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
FLEXIBLE production
Adjust the conveying platform according to various roll to roll strip,range 250 ± 10mm,the max length range is 1M per cycle.
The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
The range of feeding station is double of placement head, can produce four kinds of materials at the same time.
Intelligent electric feeder, supporting high-speed machine series.
High performance
Flight recognition camera,no pause to detect the presence or absence of components,component adsorption state,prevent placement errors
Automatic production with identification data, correction and fill missing component automatically.
The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
With the function of filling missing component automatically, realize Industry 4.0 Unmanned Workshop.
Parameter
| PCB size( Width*Length) | 250(± 10)mm*Any length |
| PCB thickness | 0.1 -0.5mm |
| Mounting way | Group picking and group placing |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Repeat precision | ±0.05mm |
| Mounting speed | Double side:500000CPH,single side:250000CPH(Optimum speed) |
| Components range | LED3014/3020/2835/5050 and resistor,capacitors,bridge rectifiers etc. |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
Five star service:
Pre-sale, on-sale and after sale,Technical support; We have professional service team, Rich experience, ensure to solution the customer’s questions. Always provide best support to you!
1)Pre-sale:
lProvide equipment, such as pick and place machine, stencil printer, reflow oven, conveyor,etc.
lSMT whole line solution, based on customer’s factory layout, requirement, product, etc.
2)On-sale
lReal-time follow-up of the production situation of the customer's machine.
lInform the customer of the production progress with video or photos
3)After sale
lOn-site Free installation
lOne-year Warranty factory service
lTwo regular visits customer one year
lFree technical training
lSoftware:Independent research and development by ETON, free upgrade whole lifetime, saving costs.
4)Technical support
lFree technical training of operating and maintenance
l7*24 hours technical online support.
lLocal engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt
