Product Details:
Payment & Shipping Terms:
|
| Model: | HT-F7S | Length: | 2700mm |
|---|---|---|---|
| Width: | 2300mm | Height: | 1550mm |
| Total Weigth: | 1700kg | Mounting Speed: | 150000~180000 CPH |
| No Of Head: | 34PCS | No Of Feeders Station: | 68PCS |
| High Light: | LED Tube SMD Mounting Machine,34 Heads SMD Mounting Machine,Pick And Place Machine 34 Heads |
||

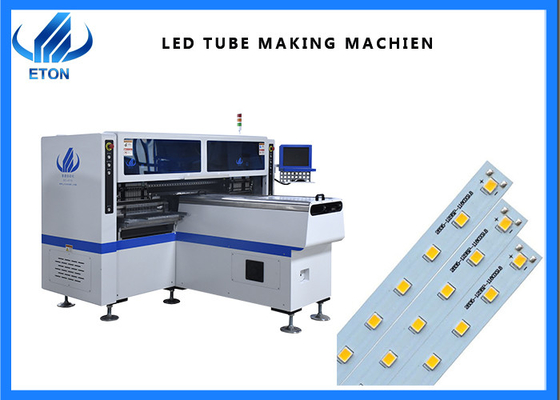

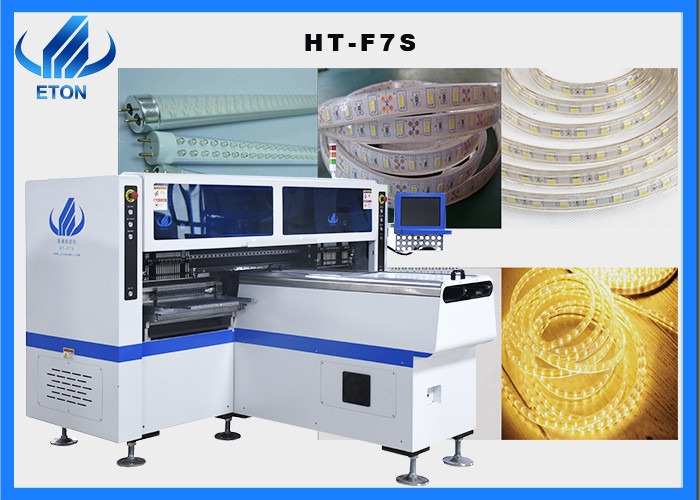

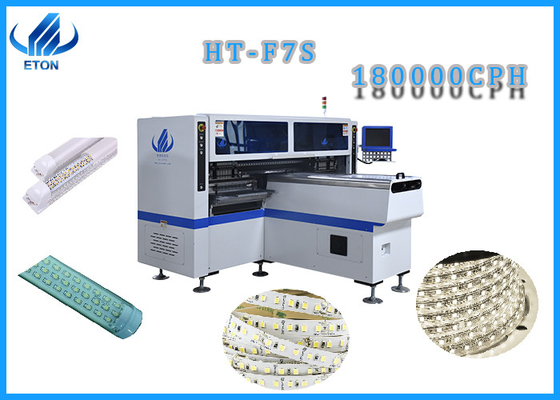

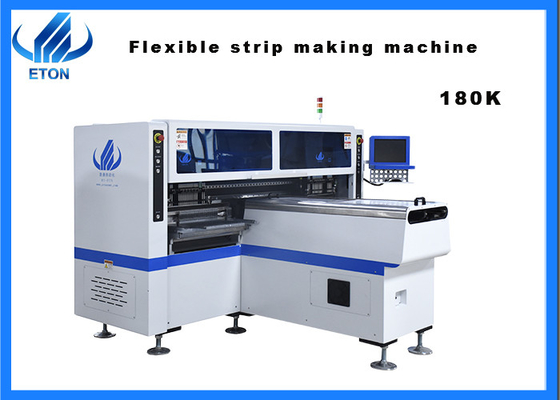

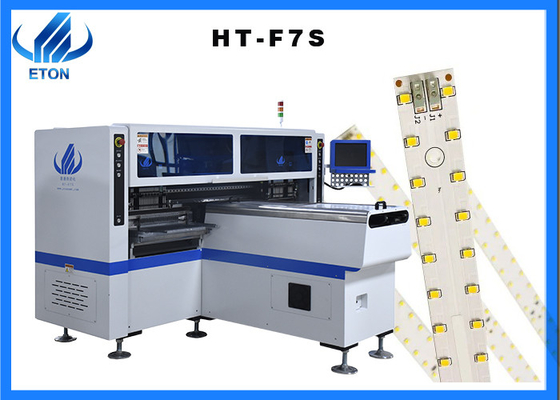

34 heads with LED tube smd mounting pick and place machine
F7S
1.34 Suction nozzle, 68 Feida material stations
2. Suitable for 0.6, 0.9, 1.2 m tubes and 0.5, 1 m soft light strips
3. RGB can be mounted, and the production capacity exceeds 150K
4. Linear motor is adopted for X and Y axis, which makes the speed faster, the mounting accuracy higher and the service life longer
5. Visual alignment+MARK correction, stable mounting.
Technical parameter
| Model | HT-F7S |
| Dimension | |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separately placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 5 sets ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor Transmission | Max Length :1200 mm |
| Transmission Speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning way | Optical |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²) 150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ Servo motor |
| Feeding System | |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
ETON Advantages
1. ETON has more than ten years of experience in the SMT industry and has its own R&D team
2. ETON has 52000 square meters of industrial park, supporting CNC/OEM
3. The shell and frame of ETON machine are independently designed and developed
4. ETON machine parts are all imported famous brands
5. ETON machine software is independently developed and supports lifelong free updates
Conclusion: ETON is your best choice.
Exhibition
Every year, we go abroad for exhibitions, such as India, Egypt, Türkiye, Pakistan, Iran, Vietnam, etc.
FAQ
Q: What is your payment terms?
A:100% payment before delivery or 50% deposit in advance and the rest before shipment.
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I'd like to know how your machines are transported?
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
