Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-F7S |
|---|---|---|---|
| Conditions: | New | Local Service: | India, Egypt, Vietnam |
| Made By: | ETON | Industrial Park: | 52,000 Square Meter |
| High Light: | SMT Mounter 180000CPH,Strip SMT Mounter,34 Nozzles strip light making machine |
||

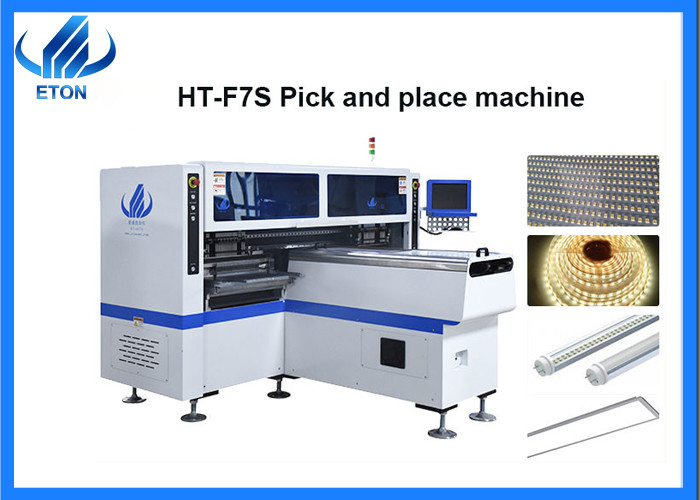

SMT Mounter 180000CPH with 34 nozzles for LED tube/strip making machine
Production features
(1) Producing with 2~4 types of materials with high capacity, available for 5m,50m or any length of flexible strip and roll to roll.

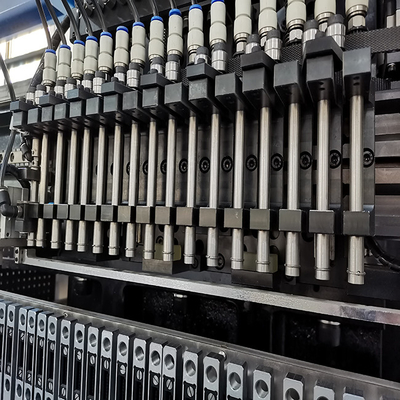

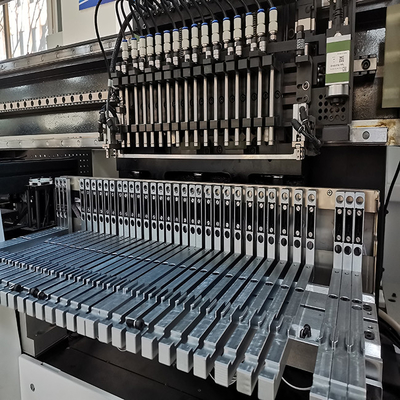

(2) This machine has a total of 34 nozzles, which mounting speed reached 180000 CPH.
(3) This machine is mainly suitable for 0.5m,1m led flexible strip, led tube, panel light and so on.
(4) Calibration automatically , high precision, available for RGB.
| Model | HT-F7S |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to pick and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 150000~180000CPH |
| Power consumption | 6KW |
| No.Of feeders station | 68PCS |
| No. Of head | 34 PCS |
ETON Advantages
Efficient team: The best suggestions of full SMT lineequipment according to your budget and site.
Competitive price: We are directly manufacture of theETON pick and place machine, so we can give you thebest competitive price with high quality materials.
High quality: We have strictly quality control during allproduction from raw materials to the finished machine.
High efficiency: Allmachines parts are made byourselves, so it" s convenient to control the timeschedule and quality timely.
Exhibition
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam,Japan, Australia, Poland, etc more than 20 countries.
Service
We can provide you with excellent service, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
1.We can provide you with the whole production line.
2.Our software is R&D independently.We can offer software upgrade for lifetime for free
3.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
4.If you have any problem with the product, we will have overseas engineers come to your home for free repair or replacement within one year. Because we have offices overseas and local engineers.
FAQ
1. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
2. I want to produce led bulb, do you have machine for that?
Yes, we could provide the whole SMT Machine for led bulb.
3.I want to produce 100 meters led strip light roll to roll, is F7S suitable ?
HT-F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible.
4. How many machines sell in India ?
We have sold hundreds of machines to India .
