Products features:

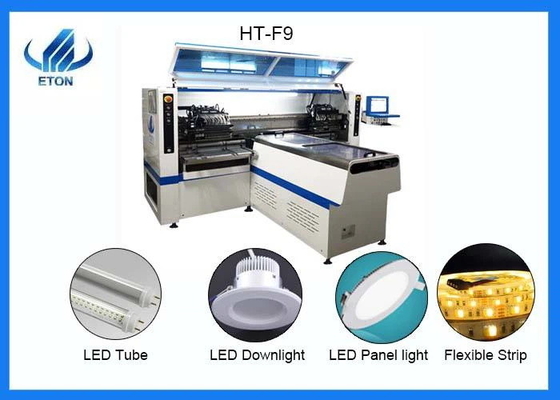

- Dual arm magnetic linear LED high-speed pick and place machine
- Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.
- Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
- Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately synchronously.
- Calibration patent technology: group to take and group to mount.
Technical parameter
| Length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB size(L* W) |
Max:1200*300mm Min；100*100mm |
| PCB Thickness |
05-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| System |
Windows7 |
| Software |
R&D Independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, mouse |
| No.of camera |
5sets(Digital camera) |
| Components |
LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc. |
| No.of feeders station |
68PCS |
| No.of nozzles |
68PCS |
| Conveyor transmission |
Max Length:1200mm |
| Electrical control |
Independent research and development by ETON |
| X,Y,Z Axis drive way |
High-end magnetic linear motor +Servo motor |
| Feeding way |
Electric feeder with double motor |
Company
Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
Market
Our products had exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Exhibition
ETON is the leading manufacturer of global op to-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. We go to the exhibition every year. Our team is professional in the SMT field. And We go to the exhibition every year.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
