Product Details:
Payment & Shipping Terms:
|
Dimension: | 2700*2300*1550mm | PCB Thickness: | 0.5-5mm |
---|---|---|---|
System: | Windows 7 | No. Of Camera: | 5 Sets |
Mounting Speed: | 180000CPH | Power: | 380AC 50HZ |
Power Consumption: | 6KW | No. Of Head: | 34 |
Details
Computer control system: The SMT placement machine is generally equipped with computer monitor and mouse. It supports English languages. It enables visual Windows 7 system in Chinese and programming and PCB file import system.because of the humanized operating.
Technical parameter

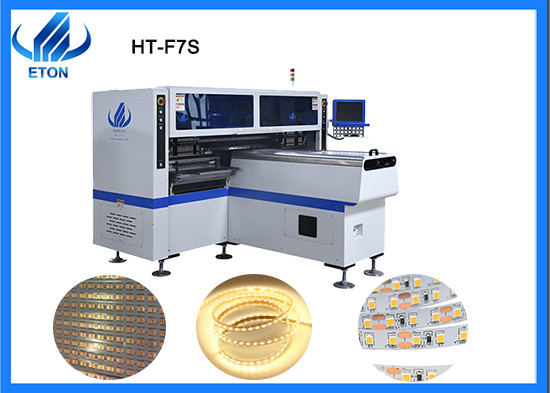

Model | F7S |
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB size(L* W) | 1200*330mm Min;100*100mm |
PCB Thickness | 0.5-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting mode | Group to take and group to mount |
System | Windows 7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 5 sets Digital camera(Digital camera) |
Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
No.of feeders station | 68PCS |
No.of nozzles | 34PCS |
Power | 380AC 50HZ |
Operating environment | 23℃±3℃ |
FAQ
Do you have oversea after sale service?
Yes ,We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
oes the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
