Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2788*1686*1375mm | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Thickness: | 0.5~4.5mm | System: | Windows 7 |
| No. Of Camera: | 4 Sets | Mounting Speed: | 80000cph |
| Power: | 380AC 50HZ | Power Consumption: | 6KW |
Feature
Product Parameters

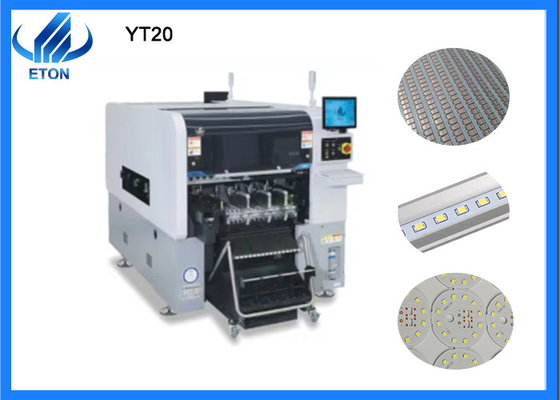

| Model | YT20 |
| Length | 2788mm |
| Width | 1686mm |
| Height | 1375mm |
| Total Weight | 1700kg |
| PCB size(L* W) |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size:50mm*50mm |
| PCB Thickness | 0.5-4.5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| System | Windows 7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 4 sets Digital camera |
| Components | Min 0201~40*40mm Tape reel packages and IC tray feeder etc. |
| No.of feeders station | Double side docking cart slot 32PCS,tape reel packages:64PCS |
| No.of nozzles | Double side:20pcs(single side:10pcs) |
| Power | 380AC 50HZ |
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
