Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMD Chip Mounter,SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMT Production Line | Mounting Speed: | 150000-180000 CPH |
| Type: | Automatic | Local Service: | India, Egypt, Vietnam |
| Brand: | ETON | Power Supply: | 380AC 50HZ |

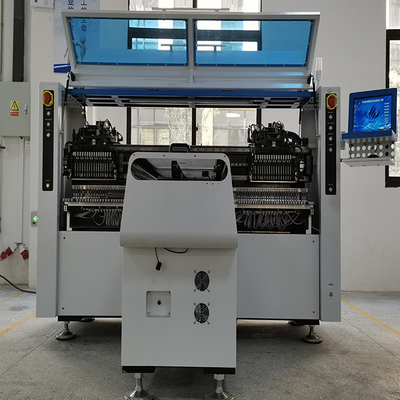

SMT mounting machine HT-F7S 180K for 0.5M Strip light PCB assembly machine
LED module mounter machine introduction
LED module mounter machine also called pick and place machine/ placement machine/SMT machine. It is one of SMT Line. The function of mounter is picking components and then mounting on the PCB. It is automatically SMT Machine.
In SMT production line, there are different machines for different module with different functions. Included Loader, Conveyor, Stencil printer, pick and place, reflow oven, un-loader, etc.
Pick and place machine features
HT-F7S is ETON most economy high speed pick and place machine for led module lighting ( for example: tube/panel/led strip), there are some important fefatures.
1. Very high capacity with economy price. it is max speed could be reach 150000-180000 chip per hour, equal to one hour could produce 80-90m led strip light, very high capacity.
2. Very intelligent, F7S suitable for mounting no more than 5mm height components, such as led chip, resistor, capacitor, bridge rectifiers, etc.
3. Easy operating machine, it is windows 7 with R&D Independently software, the display is easy touch screen monitor, it is stable and simple.
4. High precision, for F7S, there are 5 pcs cameras, the function is for vision alignment and mark correction, the repeat mounting precision is 0.02 mm.
| Model: | HT-F7S |
| PCB Length Width: |
Max:1200*330 mm Min:100*100 mm |
| Mounting speed: | 150000-180000 chip per hour |
| No. of Feeder station: | 68 PCS |
| Power | 380 AC 50HZ |
| Dimension: | 2700*2300*1550 mm |
| PCB Clamping: | Adjustable pressure pneumatic |
| Components: | SMD LED 3014/3020/3528/5050/5735/5630 and resistor, capacitor, bridge rectifiers, etc |

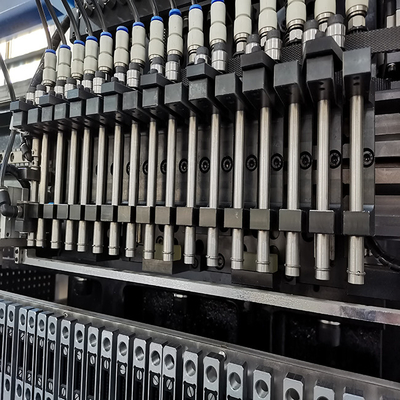

| No. of Nozzles: | 34 PCS |

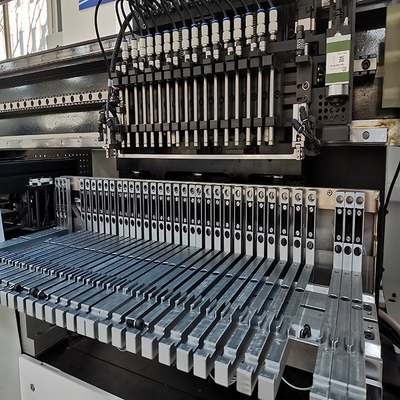

| Feeding way | Electric feeder with double motor |
Application
1.Suitable for mounting many kinds of products, such as LED tube, panel, down-light, Solar lamps, wall lamps, ceiling lamps, street lamps, table lamps and linear lamps.

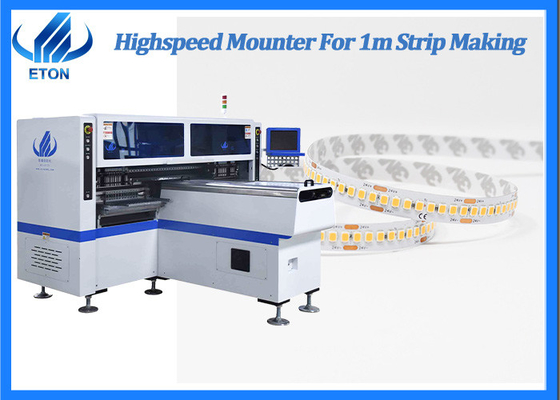

2.Can mount 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip.
3.Components: LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Exhibitions
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
FAQ
1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.What is the delivery date?
We will deliver the goods after 30 days' deposit.
3.What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
4.What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.
