Product Details:
Payment & Shipping Terms:
|
| Brand: | ETON | Model: | HT-E8D |
|---|---|---|---|
| Camera: | 4 Sets | Feeding Way: | Electric Feeder With Double Motor |
| Heads: | 24 PCS | Feeder Station: | 48 PCS |
| PCB Size: | 1200*350mm | Dimension: | 3150*2250*1650mm |
| High Light: | LED Chips Mounting Machine,SMD LED Chips Mounting Machine,90K CPH Chip Mounter Machine |
||
smd led chips mounting machine for kinds of led power driver and led light with 90K CPH
The main parameter
| Model | HT-E8D-1200 |
| Dimention | 3150*2250*1650 |
| Total weight | 2500kg |
| PCB length width | Max:1200*300mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| system | windows 7 |
| software | R&D independently |
| No.of camera | 4 sets |
| vision for the flight identification, mark correction. | |
| Mounting speed | 90000CPH |
| Components | led chip, resistors, capacitors, IC, shaped components. etc. |
| transmission direction | Both direction(option) |
| transmission mode | Auto online drive |
| electrical control | Independent research and development by ETON |
| no.of.feeders system | 48pcs double modules |
| no.of .head | 24pcs double modules |
| feeding way | Electric feeder with double motor |
Features

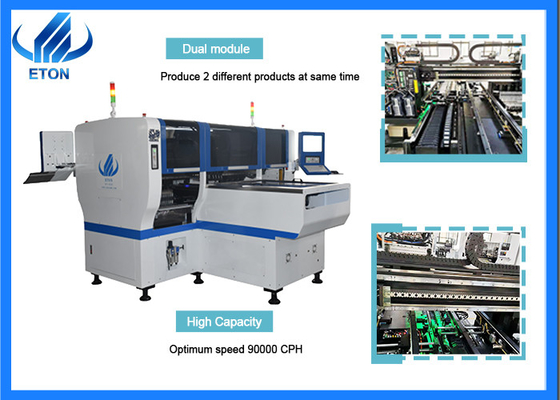

High Capacity:24 Heads, dual system dual module;Producing two different products at same timeOptimum speed 90000 CPH
High Stability: with high end magnetic linear motor and servomotor, Production Stability.
High Precision: 4 sets ofimported camera, with flight visioncamera, mark correction
Wide Application: widely apply to all kinds of led lights andelectric board
Automatic feeding: if there is leakage or throwing, it canautomatically feed to save labor.
Software: Software R&D, Updated free for life, English &Chinese language version
Production line
The production line of HT-E8D-1200 is semi-automatic production line, including semi-automatic stencil printer, conveyor, pick and place machine, reflow oven.
Application products

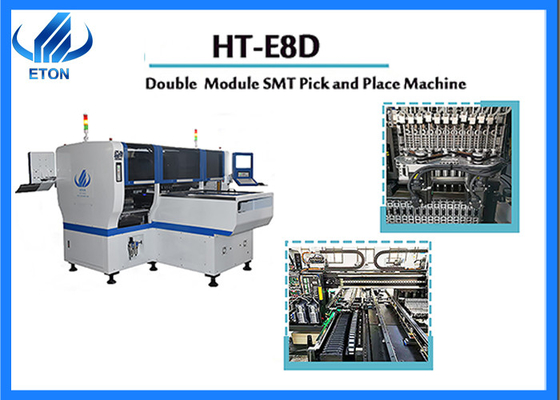

HT-E8D-1200 is a multi-functional and double module smt machine, which is apply to all kinds of led lights and electric board. Such as led bulbs, DOB bulbs, led strip light, led down light, led tube light, led spot light, led street light, led flood light, corn light, electric board, led power driver, home appliance etc.
FAQ
Q1: What is your machine actual speed?
A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc.
Q2: do you only provide smt pick and place machine?
A2: no, we can provide whole line solution if you want, loader&unloader, conveyor, reflow oven etc.
Q3: how about the machines quality?
A3: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
