| Name: | Pick And Place Machine | Components: | LED 3014/3020/3528/5050 Resistor Capacitors |
|---|---|---|---|
| Feeders: | 68 PCS | Nozzles: | 68 PCS |
| Speed: | 250000CPH | PCB Size: | 250mm*any Length |
| Warranty: | One Year | Drive Way: | High End Magnetic Linear Motor +servo Motor |
| Power: | 380AC,50 HZ | Power Consution: | 6KW |

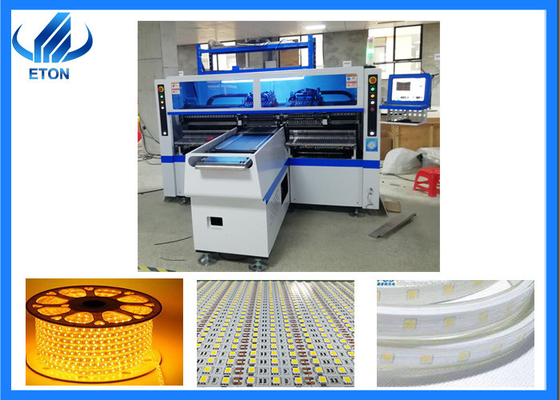

high speed pick and place equipment with 250000CPH smd placement machine in smt production line for 5m 10m flexible strip light
Features of SMT pick and place machine
Improved Usability
available for 5m,50m or any length of flexible strip and roll to roll.and available for RGB,mounting components about LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
Improved Productivity
Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 250000 CPH, 68 feeders station and 68 nozzles. It can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.
High Precision
Equipped with 5pcs of cameras: 1pc of Mark recognition camera, 1pc of 500 million pixels high precision recognition camera, and 4pcs of synchronous high-speed recognition cameras, could effectively mount 0402-5050 components, LED chip etc.
Strong durability
The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.
Technical Parameter of Pick and place machine
| HT-T9 | ||
| PCB | PCB length width | 250mm*any length |
| PCB thickness | 0.5~1.5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting height | <5mm | |
| Mounting speed | 200000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.5mm | |
| No.of feeders station | 68PCS | |
| No.of nozzles | 68PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| X,Y,X axis drive way | Servo motor + High-end magnetic linear | |
| Feeding way | Electric feeder with double motor | |
What is the position and role of this machine in the production line ?
Pick and place machine:The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB
stencil printer:Operate the stencil printer to print the solder paste onto the PCB
reflow oven:The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.
Conveyor:Check whether the PCBA is misaligned or shift.
