Length: | 2700mm | Width: | 2300mm |
---|---|---|---|
Height: | 1550mm | Weight: | 1700kg |
High Light: | 18000 CPH LED Pick And Place Machine,flex strip SMT Chip Mounting Machine,Digital Camera SMT Chip Mounting Machine |
Features
Details
component picking position can be adjusted according to PCB pad pitch , min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor , capacitor , bridge rectifier etc . wide component range .
(1) 2 sets of camera with suction nozzle: flight identification, detection of component adsorption state, record PCB board leakage situation. Adjust nozzle spacing.
(2) 2 sets of Feida cameras: detect whether there are components, adjust the Feida spacing
(3) 1 sets of mark cameras: Identify mark points
Technical parameter

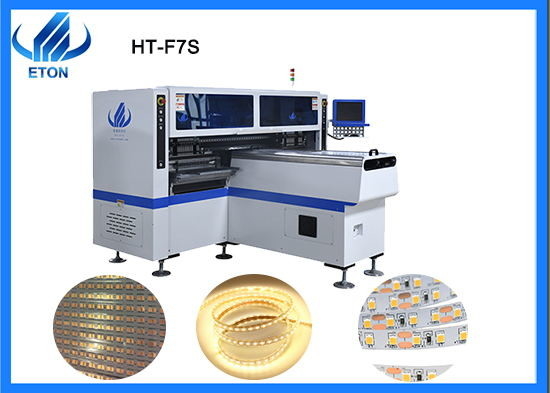

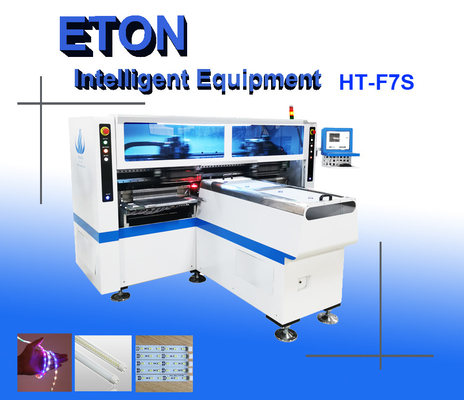

Model | HT-F7S |
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB size(L* W) | 1200*330mm Min;100*100mm |
PCB Thickness | 0.5-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting mode | Group to take and group to mount |
System | Windows 7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 5 sets Digital camera(Digital camera) |
Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
No.of feeders station | 68PCS |
No.of nozzles | 34PCS |
Power | 380AC 50HZ |
Operating environment | 23℃±3℃ |
Conveyor transmission | Max Length:1200mm |
Transmission speed | >500mm/sec |
Transmission direction | Single |
Transmission mode | Online drive |
Position mode | Optical |
Air supply | 0.4-0.6mpa(4-6kgf/cm )150N/min |
Electrical control | Independent research and development by ETON |
X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
Feeding way | Electric feeder with double motor |
ETON company
Shenzhen ETON Automation Equipment Co.,Ltd. -----Manufacturer of SMT automatic pick and place machine. Our Product playing a leading role in this industry. We have set a long lasting cooperation and partnership with most customers .Warmly welcome all customers to visit our company for friendship and cooperation.
