Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Mounting Machine | Noise: | Low |
|---|---|---|---|
| Power: | Low | Speed: | 45000CPH |
| Type: | Automatic | Voltage: | 220V |
| Warranty: | 1 Year | Weight: | 1500kg |
| High Light: | SMT Mounting Machine for Capacitors,SMT Mounting Machine for IC,SMT Mounting Machine for LED |
||

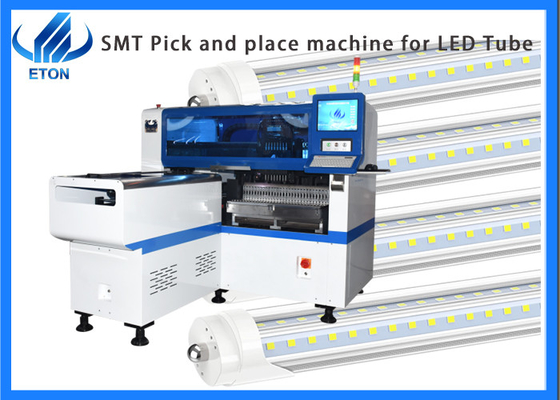

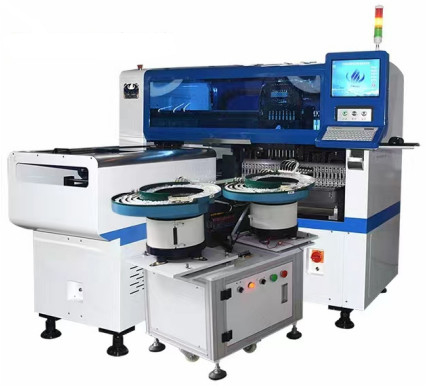

HT-E8S-600 SMT Mounting Machine: 0402 - 17mm Mounting Height, LED, Capacitors, Resistors, IC
HT-E8S-600
1.PCB size
Maximum: 600*500mm, support customization
Minimum: 100*100mm
2.Camera: two sets of imported cameras, top brand Hikvision
Features: flight recognition visual alignment, mark correction
3.Exclusive patented technology: group take and paste, take and paste separately
4.The mounting speed can reach 45000cph
Mounting height <15mm, can be mounted with light beads, capacitors, resistors, IC, special-shaped components, etc. (maximum 17mm, minimum 0402)
Parameter
| Model | HT-E8S-600 |
| Length | 1550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1500 kg |
| PCB | |
| PCB Length Width | Max:600*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |

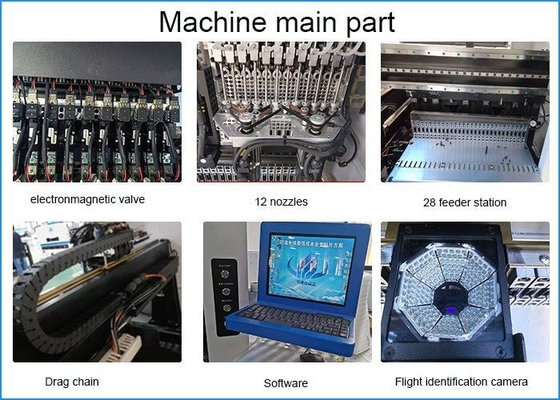

| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
Client introduction
Client: Korean client
City: Seoul
Product: LED bulb
Bought 4 multi-function placement machines, and made a fully automatic solution.
The client is from Seoul, South Korea. They began to plan to produce LED bulb in 2016. Since the local labor cost is very expensive in South Korea, our company recommends the fully automatic production line solution. According to the client's monthly production demand, we plan 4 fully automatic SMT production lines Scheme: PCB loader + Automatic stencil printer+Conveyor+ Pick and place machine + Conveyor. In order to save the client's workshop and cost, we plan to use the robot arm to connect the PCB of 4 production lines, and placed the PCB on the same line automatically, which can not only separate the reflow soldering from the SMT workshop, but also save the cost of 3 reflow soldering machines. The client is very satisfied with this solution. After the client confirms the project and purchases the machine, the machine arrives at the factory. We plan the factory wiring for the client, and then arrange Chinese engineers to go to South Korea to install the machine for the client, provide training to the client's engineers, and carry out Trial production and Mass Production until the production is smooth. Now the client's machine has been working for 7 years, the machine is running very well, the client is very satisfied with ETON's after-sales service and technical support, and the after-sales cost is also very low, the main parts of the machine are international brand with good quality and durable. ETON prove excellent quality, advanced technology, fast and timely after-sales service by time.
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days’ deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
