250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine

250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine
250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine 250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine 250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine 250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine

Large Image :  250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-F9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Pick And Place Machine Model: HT-F9
Brand: ETON Local Service: India, Egypt, Vietnam
Office Area: 3000 Square Meter Industrial Park Area: 52000 Square Meter

250000CPH SMT mounter for LED Tube & Panel highspeed pick and place machine



Introduction

HT-F9 is one of ETON Super high-speed module, widely apply to all kinds of LED Lighting and Electrical board, such as LED Tube/ Led Panel/ LED Strip Light/Etc. The function is picking components and then mounting on the PCB. It is total automatic and intelligent machine.Pick and place machine also called SMT Mounter/Placement machine/Mounting Machine/Chip mounter/etc



Parameter

No
Item
Data
1
Dimension
2700*2300*1550 mm
2
PCB Length Width
Max. 1200*330 mm
3
System
Windows 7
4
No. of camera
5 pcs
5
Mounting speed
200000-250000 cph
6
Mounting heads
68 pcs
7
Power
380 AC 50 HZ
8
Power consumption
6 KW



SMT Production Line

We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.


Below are the suggestion of basic steps for the pick and place progress and equipment :
250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine 0

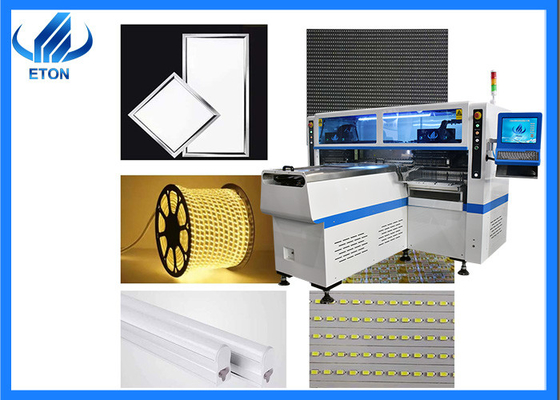

Application:

1.Suitable for mounting many kinds of products, such as LED tube, panel, down-light, Solar lamps, wall lamps, ceiling lamps, street lamps, table lamps and linear lamps.

2.Can mount 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip.

3.Components: LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.

ETON 200K CPH High Speed Pick and Place Machine HT-F9 LED Strip Light Making Machine

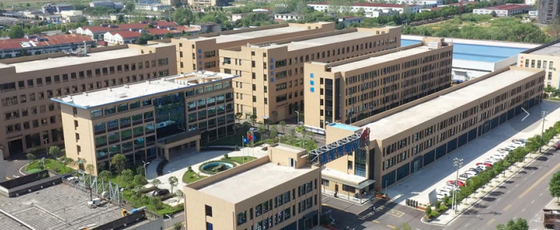

Company Profile

ETON was established in 2011 with over 10years experiences in high -speed pick and place machine. We are the largest high -tech manufacturer in China with strong capability of design ,R&D, manufacture, sales&services. “High efficiency””High quality”and “High Stability ” are he core technology of ETON. We got 9 invention Patents, 112 practical patents,12 software copyrights. Moreover, ETON has invented the fastest automatic pick and place machine with speed 500000CPH. We got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 30 countries.

250k capacity SMT mounter for 1.2m rigid/soft board low cost pick and place machine 2



Service

※ Maintenance period 1year.

We'll provide maintenance services for you in one years after you place the order. So you no worry about the quality
issues while you using our machine. ※ Software and hardware lifetime maintenance
Free service for you , we are on line 24 hours all the time , we would provide the best services for you if you need .
※ Visit customers regularly and gather information.
We would make a schedule plan to visit all our customers to see if there is any more we can do for you. best
service for you all the time ,
※ Provide latest information about technology and equipment
The technology updated so fast, so we would share you the newest good information to you .



FAQ

Q1: What kind machine could you provide ?

A1: ETON as the leading manufacturer of SMT Machine, we could provide Conveyor, Loader, Reflow oven, Stencil printer, Pick and place machine, PCB Cleaning machine, etc

Q2: What about the after sales service you provide ?
A2: We provide free machine install and training. Also provide one year warranty, during warranty, any parts need to be repaired and replaced will be free.

Q3: Do you have office in India ?
A3: Yes, we have office in India New Delhi and India engineer.
