Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | 0201 |
---|---|---|---|
Application: | SMT Mounting Shooter Machine | Power Supply: | AC220V 50Hz |
Condition: | 100% Original,Brand-new | Mounting Speed: | 48000 CPH |
Usage: | Circuit Board Assembly,SMT Mounting Machine,LED | Feeders: | 52Pcs |
High Light: | AC220V SMT Mounter,SMT Mounter 48000 cph,SMT Mounting Shooter Machine |
ETON blazer series 2023 new launched SMT mounter 48000cph with wide application pick and place
Machine main parameter
Model | KT10S |
Dimension | 1460*2015*1654mm |
Total weight | 2080kg |
PCB size | Max:500*470mm(Length can be customized) Min:50*50mm |
PCB thickness | 0.5-5mm |
Mounting precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
Mounting speed | 48000 CPH(Optimal speed) |
Components | LED, capacitor, resistors, shaped components,etc |
Power consumption | 220AC 50HZ 1.5KW |
Feeder station | 52 PCS(option 104 PCS), IC tray option |
No. of head | 10 PCS |

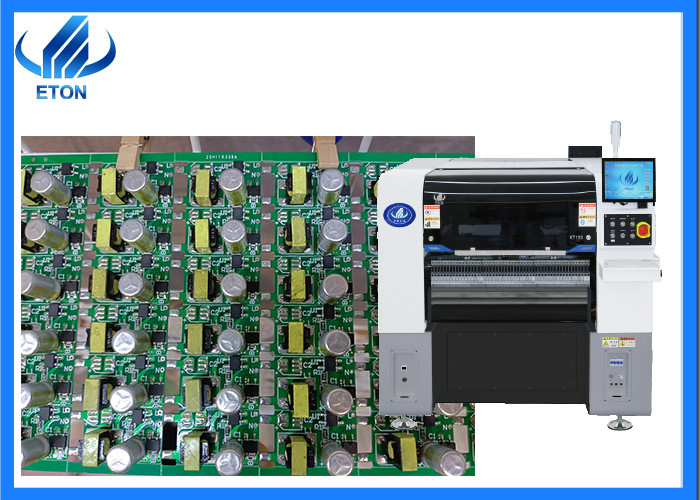

KT10S SMT Machine Features
KT10S is ETON 2023 Newest Machine, it is highly versatile, for many different eletrical board, household eletrical product, 3C product, Led lighting board, etc.
KT10S is upgrade base on ETON classic model YT series and ET series. Adopt both series features and to be the Blazer of China SMT Machine.
KT10S using the double driver for Y Axis, it is greatly improve the machine mounting precision and the speed.
Highly economy compared with same speed level mounter machine. KT10S will be on sale with a specail discount price with only low profit.
DOB Bulb making machine line
DOB Bulb making machine SMT Line is included stencil printer machine, conveyor, pick and place machine, reflow oven machine.
And this line is also not only suitable for making DOB, but also could be produce other led lighting, like the down-light, street light, panel light, driver board, etc.
ETON Advantages
(1)Suitable machines: various machines are apply for various products, DOB, LED bulbs, lens, streetlight, ceiling light, spotlight, flexible strip, electric board, power driver, household application, display min component 0201, highest capacity reach 500000CPH;
(2)Complete service: local engineers and office provide freely training and installation,software freely upgrade whole lifetime;
(3)Market and export: Help 90% of domestic LED factories to build production lines; Foreign exports to more than 30 countries and regions, such as Turkey, India, Egypt, Brazil, Russia, Pakistan, South Korea, etc
Packaging
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Service
Pre-sale
1)Provide equipment, such as pick and place machine, stencil printer, reflow oven, conveyor,etc
2)SMT whole line solution, based on customer’s factory layout, requirement, product, etc.
On-sale
1)Real-time follow-up of the production situation of the customer’s machine.
2)Inform the customer of the production progress with video or photos.
After-sale
1)On-site Free installation.
2)One-year Warranty factory service.
3)Two regular visits customer one year.
4)Free technical training
Technical support
1)Free technical training of operating and maintenance.
2)7*24 hours technical online support.
3)Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt.
FAQ
1. which kind of raw material should i prepared for SMT line?
---you need to prepared mainly include:PCB, Solder paste, Components, Feeders, Nozzles etc.
2. Do you have wave soldering machine?
---Yes, at present, we are the manufacturer of pick and place machine, but also provide the related SMT machine, such as reflow oven, stencil printer, conveyor, loader machine and so on.
3.Can you support whole SMT line?
---yes, we can provide whole SMT line solution if you want, we are professional in this field.
Client: Turkish client
City: Istanbul
Product: Led bulb/panel lights
The client used to do SKD, and plans to do SMT patch in 2021.The client need full automatic SMT production line with high capacity, but there are many components that to be mounted on the PCB board. After understanding these, ETON recommend purchasing two pick and place machines, one for LED chip and one for IC. , resistors, bridge rectifiers, etc., It’s can improve production capacity effectively. In October 2021, the client decided to purchase the full-automatic production line for the production of bulbs and panel lights, and completed the installation at the end of 2021. Now the production is going very smoothly. In the process, client learned that ETON has been focusing on SMT pick and place machine for more than ten years, and has professional R&D team, factory, sales and after-sales engineers, so they are very trusting and satisfied with ETON.In the new year, the client has launched a new plan, and the second ETON SMT production line is in the manufacturing stage and waiting to be shipped.Its mounted components mainly include LED chip , ic , bridge , socket , resistor, customer bulb size 12w, 18w, 24w and 30w, PCB board size: 12w: 240*240mm, 18w: 235*295mm, 24w: 267*267mm , 30w:269*269mm
