Product Name: | Pick And Place Machine | Color: | Silver |
---|---|---|---|
Voltage: | 220V | Size: | Customized |
Power Source: | Electric | Type: | Automatic |
Speed: | 45000chips/h | Accuracy: | 0.02MM |
Pcb Size: | 1200*500mm | Power: | 380AC,50 HZ |
Warranty: | 1 Year | Position Mode: | Optical |

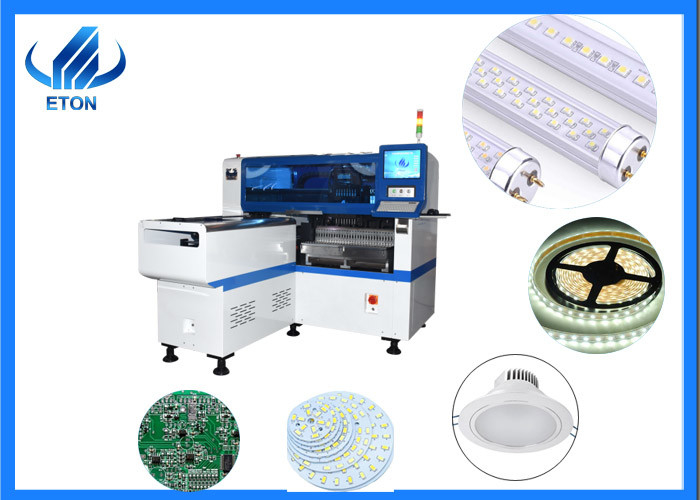

High Capacity:High-speed magnetic linear motor multi-functional pick and place machine in led light production line, single module, 12 head pasted on the 12 suction nozzles discharge at the same time, maximum mounting speed 45000 CPH.
High Precision: X axis, Y axis and feeding platform all adopt imported precision screw with high precision to improve equipment operation accuracy and transmission speed;MARK visual correction system, flight recognition visual alignment, taking photos and identifying PCB board positions to ensure patch accuracy.
Powerful functions: magnetic linear motor multifunctional pick and place machine with different feeder can be configured to meet the mounting requirements of various LED products.Can satisfy a variety of production requirements, cost savings and can meet the production requirements,
Operation&maintenance: Chinese and English graphical interface, easy to operate. Free software upgrades for life, can be saved and edited files, arbitrary call;Easy maintenance: simple design and easy maintenance. Low cost of replacement parts, low maintenance cost.
HT-E8S pick and place machine | ||
PCB | PCB length width | Max:1200*350mm min:100*100mm |
PCB thickness | 0.5~5mm | |
PCB clamping | Adjustable pressure pneumatic | |
O.S. | system | Windows 7 |
software | R&D independently | |
display | Touch screen monitor | |
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
Mounting precision | 0.02mm(repeat precision) | |
Mounting height | <36mm | |
Mounting speed | 45000CPH | |
Components space | 0.2mm | |
No.of feeders station | 36PCS | |
No.of nozzles | 12PCS | |
Power | 380AC 50HZ | |
Power consumption | 4KW | |
Transmission direction | Both direction | |
Transmission mode | Auto online drive | |
Electrical control | Independent research and development by ETON | |
Motion control card module 1set | Independent research and development by ETON | |
X,Y,X axis drive way | Servo motor+magnetic linear motor control for X,Y,Z axis |
