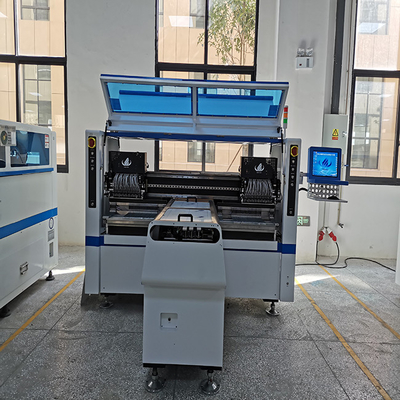

68 Nozzles SMT Mounting Machine with 0.02mm Precision and 250000CPH Speed for PCB Assembly
Technical Parameter
| Dimension |
Length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total weight |
1700kg |
| PCB |
Length Width |
Max:1200*330mm
Min:100*100mm
|
| Thickness |
0.5-5mm |
| Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount. |
| Vision system |
No.of camera |
5 PCS |
| Feature of camera |
Vision alignment,MARK correction |
| Mounting precision |
±0.02mm |
| Mounting height |
≤5mm |
| Mounting speed |
250000CPH |
| Feeder station |
68 PCS |
| Nozzles |
68 PCS |
| components |
LED3017,3020,3528,5050 and resistor,capacitor,bridge rectifiers. |
SMT
Surface mount technology (SMT) is a new generation of electronic assembly technology developed from hybrid integrated circuit technology. It is characterized by surface mounting of components and reflow welding technology. It has become a new generation of assembly technology for electronic products manufacturing. SMT line main equipment: printing machine, SMT machine (upper surface electronic components), reflow welding, plug-in, wave furnace, test packaging. The wide application of SMT promotes the miniaturization and multi-function of electronic products, and provides conditions for mass production and low defect rate production. SMT is surface assembly technology, which is a new generation of electronic assembly technology developed from hybrid integrated circuit technology.

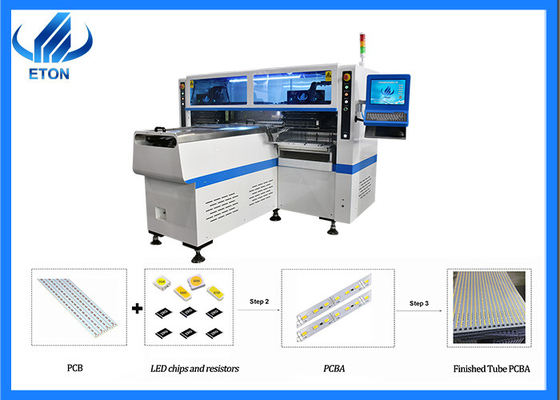

Application production&component
The mahcine mainly mounting linear produce,such as tubes, flexible strips, panel lights, display screens,etc.
Honor client
ETON with more than 10 years experience in SMT LED manufacturer are our partners in China.
Some details of the machine
Service
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Related SMT machine:
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing.
General steps of solder paste printing press
1. General steps of solder paste printing press:
1. PCB circuit board is fed into solder paste printing machine along the conveyor belt.
2. The machine looks for the main edge of PCB and locates it.
3. Move Z frame upward to the position of vacuum plate.
4. Add vacuum and firmly fix PCB in specific position.
5. The visual axis (lens) slowly moves to the first target (reference point) of PCB.
6, visual axis (lens) to find the corresponding steel net under the target (reference point).
7, the machine moves the printing screen to align the PCB, the machine can make the printing screen move in the X, Y axis direction and rotate in the θ axis direction.
8, steel mesh and PCB alignment, the Z-shaped frame will move up, driving PCB to contact the bottom of the printing screen.
9. Once moved in place, the scraper will push the solder paste to roll on the mesh board and print on the PAD position of the PCB through the holes on the mesh board.
10. When printing is completed, the Z-shaped frame moves down to drive PCB to separate from the steel mesh.
11. The machine will send the PCB to the next process.
12. The printing press requires to receive the next pcb product to be printed.
13. Do the same process, but print in the opposite direction with a second scraper.
