| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Mounting Speed: | 250000 CPH | Feeders: | 68 |
| Nozzles: | 68 | Tape Width: | 24mm,8mm,12mm |
| High Light: | LED Strip Mounting Machine,5mm Height SMT Chip Mounter,LED Strip SMT Chip Mounter |
||

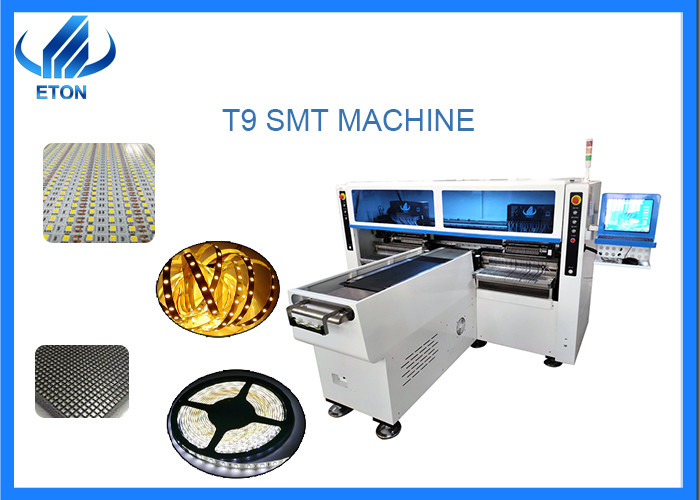

Fast LED Strip Mounting Machine HT-T9 250000 Cph in strip production line
Technical parameter
| Model | HT-T9 |
| Dimension | |
| Length | 3100mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting Mode | Group picking and separately placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 5 PCS ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat mounting Precision | ±0.02mm (Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of head | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max Length :1000 mm |
| Transmission speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning Way | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |
Electric feeder with double motor
The motor controls the winding of the belt, and feeder carries out the feeding. Independent control, more accurate, reducing failure rate.
Our advantages:
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
