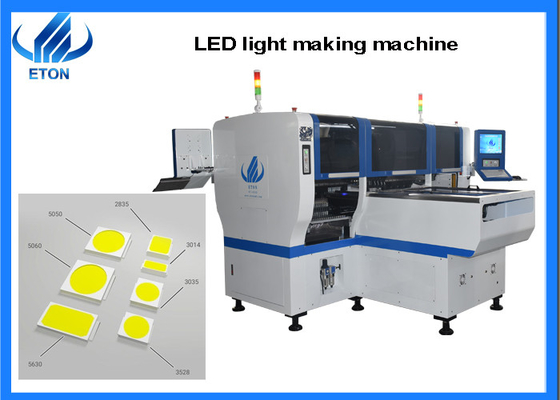

90000CPH low cost smt pick and place machine with 20 heads for led light lamps

90000CPH low cost smt pick and place machine with 20 heads for led light lamps
90000CPH low cost smt pick and place machine with 20 heads for led light lamps

Large Image :  90000CPH low cost smt pick and place machine with 20 heads for led light lamps

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: ccc,ce,rise
Model Number: HT-E8D-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 59000~79000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: SMD Pick And Place Machine Dimension: 3150*2250*1650mm
Applicable Components: 0402,SOP,QFN,IC,0805 Mounting Speed: 80000CPH
Warranty: 1 Year Total Weight: 2000kg
Power: 380AC 50HZ Power Consumption: 8KW
Heads: 24 PCS Nozzles Feeder Station: 48 Pcs Feeder Station

pick and place smd machine in smt production line



Function of SMT machine




1. Platform drive adopts panasonic servo motor from Japan, and lead screw with linear guide rail to ensure the stability and control accuracy of platform movement.
2. The X and Y axis adopt high-end magnetic linear motors to ensure the high accuracy, speed and stability of the patch.
3. 16 high-speed heads work at the same time, greatly improving the cost performance of the equipment. Suction head movement, high precision, long durability.
4. Simple and easy to understand graphical programming, greatly improve the convenience of operation, automatic visual positioning to assist positioning, positioning accurate and convenient.
5, the use of industrial computer + independent special controller control, system stability, simple operation, easy to learn.



Technical parameter of SMT machine




Technical parameter
PCB
PCB length width Max:1200*300mm min:100*100mm
PCB thickness 0.5~5mm
PCB clamping Adjustable pressure pneumatic
O.S.
system Windows7
software R&D independently
display Touch screen monitor
input Keyboard mouse
Feeding system
No. of feeders station Dual mode ,totally 40
No.of nozzles Dual mode,totally 16
Feeding way Electric feeder with double motor



Pictures of SMT machine



90000CPH low cost smt pick and place machine with 20 heads for led light lamps 0

90000CPH low cost smt pick and place machine with 20 heads for led light lamps 1



FAQ

1) Do you have oversea after sale service?
We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
2) How is the training?
After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials..
3) It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and
many technology patents, and have rich experience (more than 10 years) in LED light
production line program.
5) why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
