Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
| Power Supply: | AC220V 50Hz | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 180000 CPH | Type: | Automatic |
| Usage: | SMT Mounting Machine | Feeders: | 68 |
| High Light: | SMT Placement Machine for LED 3020,SMT Placement Machine for LED 3528,Capacitors Placement Machine |
||

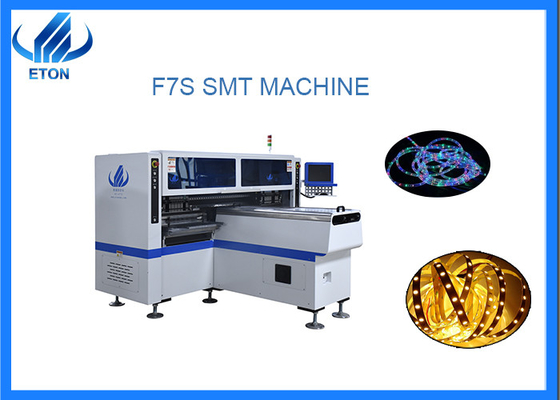

HT-F7S SMT Mounting Machine for LED3014/3020/3528/5050 & Capacitors
Technical parameter
| Model | HT-F7S |
| PCB size(L* W) | 1200*330mm Min；100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| System | Windows 7 |
| Software | R&D Independently |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station | 68PCS |
| No.of nozzles | 34PCS |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Company profile
Shenzhen ETON Automation Equipment Co., Ltd., has devoted itself to researching
SMT placement machine and its peripheral equipment for 14 years. The company
also has a branch in Jiangxi Province. The total area reaches 50,000 square meters
and has the largest industrial park.
Exhibition
Our products not only sell well in China, but also exported to more than 20 overseas countries,
such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.And
we also participate in many abroad and domestic exhibition .
Abroad: Thailand Exhibition, Turkey exhibition, India Mumbai exhibition, India Delhi exhibition,
Pakistan exhibition, Egypt exhibition and others.
Domestic :Guangzhou Guangya Exhibition, Shanghai Munich exhibition and Chongqing led exhibition
and so on.
Packing&Service
First step:Using film packaging
Second step:vacuum packing
Last step:Wooden box
l Free installation
l Free training
l Free consult
l Free software upgrade
FAQ
1. Which service you can offer for me?
l The warranty period of the whole machine is 1 year.]
l Visit customers regularly and gather information .
l Provide latest information about technology and equipment.
2.Can you provide all machines on the compete product line for me?
A:We can offer all machines for you.
3. Which payment method do you support?
A:L/C and T/T.
4:Does the price include nozzles and feeders?
A:We don't include nozzles and feeders,because each customer requires.
5:What kind of nozzle is the machine?
A:Multi function machines are generally made of alloy and ceramics, and special machines are generally made of steel and copper
