| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 180000 CPH | Feeders: | 68 |
| Tape Width: | 24mm,8mm,12mm | Local Service: | India, Egypt, Vietnam |
| High Light: | Lamp Production Pick Place Machine,Lamp Production SMT Mounting Machine,18w CPH SMT Mounting Machine |
||

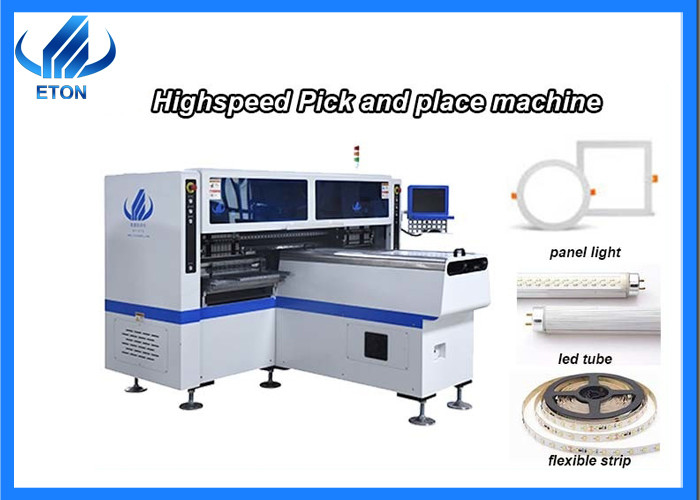

SMT Mounting Machine: F7S for Lamp Production 180000CPH pick and place machine
Recommended scheme for lamp production (F7S)
Suitable for the production of 0.6, 0.9, 1.2 meters of lamps, with a capacity of 15k-18k
Printing machine: use steel mesh to leak solder paste onto the solder pad of PCB board
Docking station: transmission PCB board, with buffer function
Mounter: accurately mount components to the designated position of PCB
Reflow soldering: pass the PCB board through the reflow soldering furnace, so that the components and PCB boards can be better bonded.
Technical parameter
| Model | HT-F7S |
| Dimension | |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separately placing |
| Vision System | |
| No. of Camera | 5 sets ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Feeding System | |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
SMT Production Line
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Pick and place machine: Mount the electronic component at the specified position on the PCB.
Reflow oven: Melt the solder paste and fix it to the mounting element.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
FAQ
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: What is your payment terms?
A:100% payment before delivery or 50% deposit in advance and the rest before shipment.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of "Shenzhen high tech enterprise", "Guangdong high tech enterprise", "national high tech enterprise" and "Shenzhen famous"
SMT detection
In LED lights making machine production, in addition to manual visual inspection, defects in the production process can also be detected by machines, such as AOI optical inspection.
The machine automatically scans the PCB through a camera, captures images, and compares the tested solder joints with qualified parameters in the database. And after image processing, inspect the defects on the PCB and display/mark the defects through the display, or automatically mark them out for repair. It adopts high-speed, high-precision vision processing technology to automatically detect various installation errors and soldering defects on the PCB board. PCB boards range from fine-pitch high-density boards to low-density large boards, providing in-line inspection solutions to improve production efficiency and soldering quality.
Automated Optical Inspection (AOI) will reduce defects and find and eliminate errors early in the assembly process for good process control. Early detection of defects will avoid sending bad PCBs to subsequent assembly stages, and will reduce repair costs and avoid scrapping non-repairable boards.
