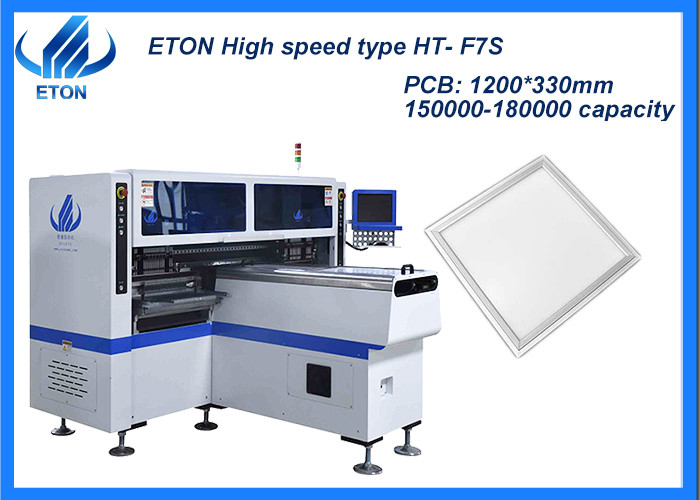

Professional 180000 CPH LED tube rigid PCB SMT pick and place machine
Production description
Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH.
- Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.

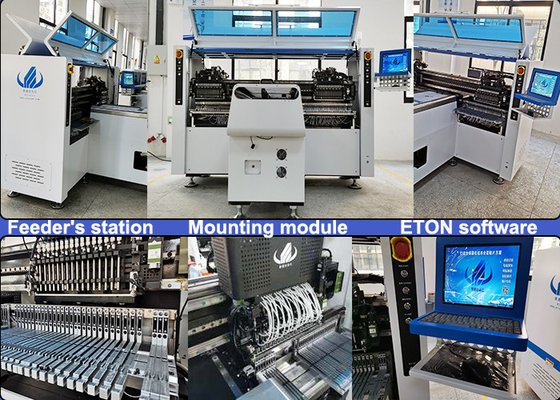

- Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group picking and group mount placing.
- IPC9850 capacity: 150000-180000 CPH
Machine parameter
| Model |
HT-F7S |
| Dimension |
2700*2300*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max: 1200*330mm
Min: 100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting speed |
150000-180000 CPH |
| No. of feeders station |
68 PCS |
| No. of head |
34PCS |
Certificates
ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.
Exhibition
Eton actively participates in both domestic and international exhibitions annually, showcasing its SMT pick and place machines. Domestic events include Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, and Chongqing LED Light Exhibition. Internationally, Eton engages in exhibitions such as India Mumbai, India Delhi, Egypt, Turkey, Pakistan, and Thailand. With experience spanning over 30 countries and regions, Eton remains dedicated to promoting its SMT solutions worldwide.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
