Outdoor Light/indoor Light making machine Light Production Line solution

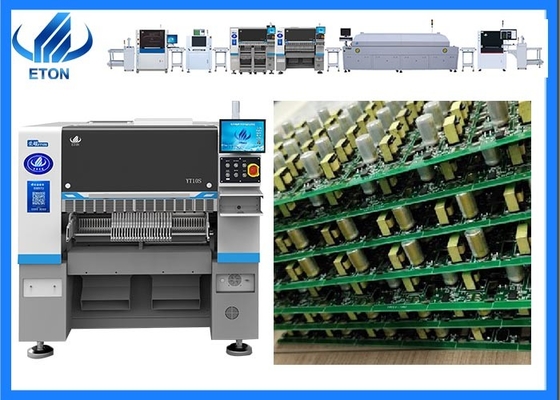

Large Image : Outdoor Light/indoor Light making machine Light Production Line solution

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	ccc，ce,rise
Model Number:	YT10S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	FOB USD 33000~43000/sets
Packaging Details:	Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time:	30 days after deposit
Payment Terms:	L/C, T/T
Supply Ability:	50 sets per mouth

Contact Now

Detailed Product Description

Name:	SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle	Power Supply:	AC220V 50Hz
Warranty:	1 Year	Dimension:	149021901650mm
Mounting Speed:	48000CPH	Mounting Height:	<16mm
Total Weight:	1850kg	Condition:	100% Original,Brand-new
Applicable Components:	0402,0805,0603,1206,SOP	Application:	SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine

High-Performance DOB lamps production Line Solution

LED Light Production Line Solution

LED Light Production Line Solution for all kind of led lamps.DOB bulbs,linear bulbs,NEON Light,strip light,tube light,flood light ,downlight,power driver,etc

Outdoor Light/indoor Light making machine Light Production Line solution 0

Outdoor Light/indoor Light making machine Light Production Line solution 1

SMT line details:

PCB
PCB Length Width	Max:500450mm(1200450 option) Min:50*50mm
PCB Thickness	0.5-5mm
PCB Clamping	Cylinder clamping, track width adjustable
Mounting Mode	Group picking and separate placingseparate picking and separate placing
O.S.
System	Windows7
Software	R&D independently
Display	LED monitor
Input Device	Keyboard, Mouse
Vision System
No. of Camera	1 PCS (Head flight vision camera)
	2 PCS Mark camera
Mounting Precision	CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ)
Mounting Height	≦16mm(Other height can be customized)
Mounting Speed	48000 CPH(Under best condition)
Components	0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized
Components Speed	0.2mm
No. of Feeders Station	52 PCS (104 PCS option)
No. of nozzles	10 PCS
Power	220AC 50HZ
Power Consumption	1.5kw
Operating Environment	23℃±3℃
Transmission Speed	＞1000mm/sec
Transmission Direction	Single(left→ right or right→ left)
Transmission Mode	Online drive
Position Mode	Optical
Gas consumption	0.4-0.6mpa (4-6kgf/cm2)600N/min
Electrical control	Independent research and development by ETON
Motion control card module 1 set	Independent research and development by ETON
X,Y,Z Axis Drive way	High-end magnetic linear motor

Semi-automatic Stencil Printer ET-S600

Model	ET-S600
Dimensions	14008001680mm
Platform size	650×370mm
PCB size	600×350mm
Template size	550×830mm
Printing speed	0-8000mm/min
PCB thickness	0-50mm
PCB fine tuning range	Front/side±10mm
Power supply	1PAC 220V 50/60HZ
Platform height	850±20mm
Repeatability precision	±0.01mm
Positioning mode	Outside/Reference hole
Weight	Approx.280Kg

Single rail conveyor ET-C600

Model	ET-C600
Steel frame structure, rail length	L=600 mm
Width adjustment range	50～350 mm
PCB size	500*350 mm
Transmission height	920±20
Transmission	5MM flat belt conveyor
Speed	Adjustable from 0.5 to 9 m/min
Motor	One set of 25 W stepper motor
Control	Industrial control panel
Transmission Direction	Single (left → right )
One section of control, two Sensors

Reflow Oven ET-R8

ET-R8
NO. of heating zone	Upper 8 hot air heating, lower 8 hot air heating
Length of heating zone	3000mm
heating method	Full hot air
PCB maximum width	450mm mesh belt, Single lead rail
Transport direction	left-right,right to left(option)
Conveyor belt height	Mesh belt 880±20mm
Delivery method	Mesh belt drive + rail (optional)
Conveyor speed	0-2000mm/min
power	380V 50/60Hz Three-phase five-wire AC:380V 50Hz
Starting power	28KW
Working power	7KW
Heating time	Around 15 mins
Temperature control range	Room temperature～350℃
Temperature control method	PID control + SSR drive
Temperature control accuracy	±1℃
Abnormal alarm	Abnormal temperature alarm
Machine dimensions(LWH)	5000mm1000mm1500mm
Machine weight	1200kg

Service ETON

Outdoor Light/indoor Light making machine Light Production Line solution 6
ETON is the leading SMT MACHINE manufacturer in China.
R&D team and mature technology,Independent manufacturing park about 52000 square meters
Big market shares in India,Turkey,South Africa, Pakistan, Egypt.Poland etc.
Free installation and training, About 10 overseas engineers.
