NEW Functions and performence:
1. Integrated Placement Head
The 10 sets of Z axes are independently controlled by modular Magnetic Linear motor,Which greatly improves The Speed ,accuracy and stability
2.Precision Corner System
The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, with a center distance of 16mm.
3.Head Flight Vision recognition Camera
Head flight recognition + fixed flight recognition camera (option), high speed and high-precision identification.the component can do 0201 to 35*35mm, height 16mm, other height can be customized
| Mounting Heads |
10 heads |
| Feeder station |
52 Feeder Station |
| Mounting Speed |
48000CPH |
| MARK Camera |
2PCS |
| Components |
0201~15*15mm packaging materials and IC material(optional fixed identificational camera for 0201~40*40mm) |
| MES System interface |
Customized |
Application--SMT Line
More smt production line equipments
We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.
Below are the suggestion of basic steps for the pick and place progress and equipment :
Loader machine--Stencil Printer--Pick and Place machine--Conveyor--Reflow Ovem--Unloader Machine

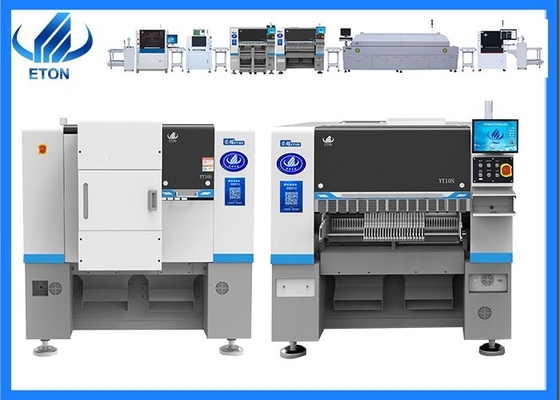

Application for YT10S PICK AND PLACE MACHINE
Apply for 0201~35*35mm ,IC ,Resistor,capacitor,shape components,etc
Lighting industry:DOB bulbs,panel light,down light,street light,tube light,strip light,lens products,etc
Electronic industry:Electric pcb board,FPCB board,TYPE-C Change port,New energy,pwer driver,household applicance,etc
